Pregnancy and cardiac disease
C
Elliott,1
MB ChB, FCOG (SA), MMed; K Sliwa,2,3,4 MD,
PhD, FESC, FACC; R Burton,1,3 BSc (UK),
MB BS (London), PhD (London), MRCOG (UK), FCP (SA), Cert ID Phys
(SA)
1 Division of Obstetrics and Gynaecology, Faculty of Health Sciences, Groote Schuur Hospital and University of Cape Town, South Africa
2 Hatter Institute for Cardiovascular Research in Africa, Department of Medicine, Faculty of Health Sciences, University of Cape Town, South Africa
3 Institute of Infectious Diseases and Molecular Medicine, Faculty of Health Sciences, University of Cape Town, South Africa
4
Soweto
Cardiovascular Research Unit, University of the
Witwatersrand, Johannesburg, South Africa
Medical disorders in pregnancy are one of the top five causes of maternal mortality in South Africa (SA), cardiac disease (CD) being the main contributor to this group. In developed countries, surgically corrected congenital heart disease (CHD) comprises the greater proportion of maternal deaths from CD. In SA and other developing countries, acquired heart disease such as rheumatic heart disease and cardiomyopathies are the major causes, although CHD remains significantly represented.
Both congenital and
acquired cardiac lesions may present for the first time during
pregnancy. CD may also occur for the first time during or after pregnancy, e.g.
peripartum cardiomyopathy. The risk to both the mother and the
fetus increases exponentially with the complexity of the
underlying disease. Generally, the ability to tolerate a
pregnancy is related to: (i) the haemodynamic significance
of any lesion; (ii) the functional class – New
York Heart Association classes III and IV have poorer
outcomes; (iii) the presence of cyanosis; and
(iv) the presence of pulmonary
hypertension. While the ideal time to assess these factors is
before conception, women frequently present when already
pregnant. This review discusses risk assessment and management
of CD in pregnant women and the role of a combined cardiology
and obstetric clinic.
S Afr Med J 2014;104(9):641.
DOI:10.7196/SAMJ.8762
In the most recent
confidential enquiry into maternal deaths, medical disorders
in pregnancy are listed as one of the top five causes of
maternal mortality in South Africa (SA),1 with cardiac disease (CD) being
a major contributor (Fig. 1). In developed countries, such as
the UK and the Netherlands, heart disease is the most common
cause of indirect mortality, with surgically corrected
congenital heart disease (CHD) comprising the greater
proportion of this group. Because of childhood surgical
intervention, most women with CHD reach childbearing age.2
,
3
In SA and other developing
countries, acquired heart disease such as rheumatic heart
disease, hypertensive disorders of pregnancy4
,
5 and cardiomyopathies contribute
the largest number of patients, although CHD remains
significantly represented.3
,
6
,
7
Evaluation of cardiac disease in pregnancy
The care of pregnant patients with CD requires special attention to diagnostics, treatment and continuous follow-up. Conducting a systematic, accurate and realistic risk assessment for potential maternal and fetal complications and anticipated adverse outcomes, both during pregnancy and postpartum, is vital to the success and safety of the pregnancy.8
When evaluating the impact of CD in pregnancy, it is important to mention the physiological adaptions occurring in a normal pregnancy. With regard to the circulatory system, the primary event is peripheral vasodilatation, which results in a decrease in peripheral vascular resistance. Due to this effect the cardiac output (CO) increases by approximately 40%, which is mainly achieved by an increase in stroke volume (SV) and is secondarily due to an increase in pulse rate (PR). These variables are expressed by the equation CO = SV × PR. It is not uncommon for the PR to increase by up to 20 beats/min. The systemic blood volume increases by approximately 50% antenatally and by a further 50% at delivery, when a massive autotransfusion of blood from the involuting uterus into the general circulation occurs. In general, pregnancy is a well-adapted, physiologically altered state, provided that every system (including the cardiovascular system) remains healthy. However, in the presence of CD, the circulatory changes may adversely affect maternal survival, morbidity and perinatal outcome.9 The close interaction of the cardiovascular system and the placenta has provided evidence for a cardioplacental syndrome that has been described previously.10
Diagnosing cardiac disease
History and examination
Many disorders can be identified by a clinical examination and a patient’s history, but in the majority, if not all cases, an echocardiogram is required to confirm clinical suspicions.
Both congenital and acquired cardiac lesions may present for the first time during pregnancy. In many cases the history is unclear and documentation of previous surgical procedures unavailable. CD may also occur for the first time during pregnancy or the postpartum period, e.g. in peripartum cardiomyopathy.
In all cases, a detailed family history is especially important and may highlight the risk of a congenital lesion, as well as potentially fatal conditions such as arrhythmias and sudden death syndromes.
Symptoms such as increased shortness of breath, decreased effort tolerance, orthopnoea, paroxysmal nocturnal dyspnoea, syncope, palpitations and chest pain are all potential indicators of CD. However, in pregnant women it may be impossible to distinguish such symptoms from those which commonly occur during a normal pregnancy, i.e. shortness of breath, fatigue and decreased effort tolerance. In addition, the cardiovascular examination of a healthy pregnant woman may well reveal peripheral oedema, a raised PR and a physiological murmur.
Critical evaluation of the symptoms described in the history will enable the clinician to distinguish pathology from normal physiological changes. For example, a woman who cannot complete daily tasks owing to worsening shortness of breath, can be categorised as a New York Heart Association (NYHA) class III or IV patient, and if she has trouble sleeping it would be cause for concern. On the other hand, a woman who maintains her usual functional level with the typical physiological breathlessness of pregnancy most noticeable at rest and decreasing with exertion, would be unlikely to have cardiovascular pathology.
A resting tachycardia, a
pathological murmur and/or signs of cardiac failure are findings
that would require urgent investigation. Table 1 summarises the
physiological adaptations of the cardiovascular system during
pregnancy.
Special investigations
Investigations such as an electrocardiogram (ECG), a 24-hour
heart rate and rhythm (Holter ECG) recording or an
echocardiogram are technically more difficult, particularly in

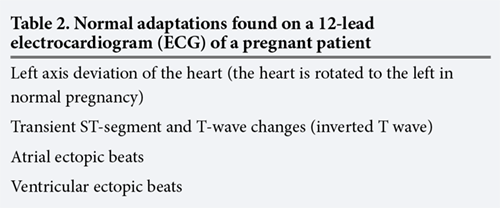

advanced pregnancy, but should be performed if indicated. Table
2 summarises the normal adaptations found on a 12-lead ECG of a
pregnant patient.
The transthoracic echocardiogram is the most important screening and diagnostic tool in identifying structural lesions and assessing cardiac function. An additional benefit in pregnancy is that it does not expose the patient to radiation and can be repeated as often as required. However, an echocardiogram is technically more difficult to perform in a pregnant woman owing to the gravid abdomen, breast engorgement and rotation of the heart.
A 24-hour Holter ECG should be
used if there is clinical suspicion of significant arrhythmias
or if the patient complains of symptoms such as prolonged
palpitations or syncope. More sophisticated devices, such as
loop recorders, have been inserted into a select group of
patients who are at high risk of potentially fatal arrhythmias.
Assessment of risk
Once a diagnosis has been
made and cardiac function evaluated, assessment of the
potential effect of the pregnancy on the CD, as well as the
effect of this condition on the pregnancy, should be
documented. Arrangements should be made for the delivery and
follow-up during the antenatal and postpartum periods. An
optimal time for these plans to be implemented would be before
conception, as this would allow for a baseline assessment of
cardiac function and provide an opportunity for the relevant
counselling. Indicated interventions can be performed prior to
conception, thus avoiding fetal exposure to ionising radiation
and procedural risks.3 In the case of a familial
condition, or if there is a risk of inheritance (e.g.
congenital cardiac lesion), it may also be relevant to refer
the patient to and include a medical geneticist during the
pre-pregnancy counselling sessions.3
Once the patient has expressed a
wish to conceive, cardiac function should specifically be
evaluated and adjustments made to medications if necessary.
Risk scores
There are various risk scoring systems available to assist in the counselling of patients with CD in their reproductive years. Risk scores are population-dependent and any given study examining risk should therefore have an adequate prevalence within the sample population of a specific lesion or clinical scenario to be able to evaluate the risk meaningfully.
In broad terms, the ability to tolerate a pregnancy is related to the following:11
• haemodynamic significance of any lesion
• initial functional class
• presence of cyanosis
• presence of pulmonary hypertension.
To date, the World Health Organization (WHO)’s risk assessment classification is the most accurate, comprising four categories of severity (Table 3):11
• WHO I: No increased risk of mortality, mild increased risk of morbidity – low risk.
• WHO II: Small increased risk of mortality, moderate increased risk of morbidity – medium risk.
• WHO III: Significantly increased risk of mortality and morbidity – high risk.
• WHO IV: Extremely high risk of mortality or severe morbidity – pregnancy contraindicated.

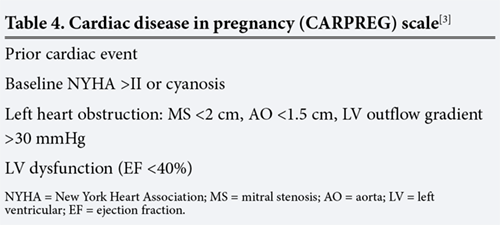

Other published risk classifications include the cardiac disease
in pregnancy (CARPREG) scale, which allocates a point for each
of the following (Table 4):3
The total score is interpreted as follows:
• 0 points = 5% risk of maternal complications
• 1 point = 27%
• >1 point = 75%.
In addition to the above, the following independent predictors
may be included:
• any prior cardiac event (e.g. congestive cardiac failure or arrhythmia)
• baseline NYHA >II
• use of cardiac medication
• ejection fraction <40%.
Referral pathways
The risk to the mother and fetus increases exponentially with
the complexity of the underlying disease.12 Based on
the risk categories described above, a referral algorithm (Fig.
2) has been developed by our unit, which provides a guideline to
assist in the correct referral of pregnant patients with
suspected or known CD to a multidisciplinary combined cardiology
and obstetric clinic.
Fig. 2. Referral algorithm for suspected and previously known cardiovascular disease in maternity (BP = blood pressure; BMI = body mass index; ECG = electrocardiogram; ASD = atrial septal defect; VSD = ventricular septal defect; EF = ejection fraction; NYHA FC = New York Heart Association Functional Class; PPCM = peripartum cardiomyopathy; HT = hypertension; RHD = rheumatic heart disease; AV = aortic valve; CDM = cardiovascular disease in maternity).
During consultations, a team of
cardiologists and obstetricians will make a detailed assessment,
based on the following criteria:
What is the present cardiac function?
The cardiac function of a pregnant woman needs to be assessed
by applying the NYHA functional class, and any current
prescribed medication required to maintain this functional class
needs to be documented. The physical examination must include
blood pressure, heart rate and an overall clinical examination,
including an ECG. If the patient has an abnormal clinical
examination or ECG, an echocardiogram is indicated.
What is the severity of the lesion (according to the WHO scale) and its impact on cardiac function?
A patient with a large ventricular septum defect may, for example, have a severe left-to-right shunt that puts the right heart under increased strain when the volume expansion of pregnancy commences. If the pressure in the right heart and pulmonary vessels increases to that of the left heart, the result is a left-to-right shunt, leading to cyanosis.
Another example is the
consequence of severe mitral regurgitation, which may lead to an
enlarged left atrium, clot formation and atrial fibrillation.
What is the risk to the fetus?
There are certain risks to the fetus in terms of inheritance,
growth restriction, use of medication, and preterm delivery.
What is expected to occur during pregnancy, and how will this be managed?
During pregnancy there is often a decrease in effort tolerance and an increase in shortness of breath, requiring the administration of a diuretic, e.g. hydrochlorothiazide or furosemide. Patients may also experience palpitations, which can be controlled by a beta-blocker.
The WHO classification can also be used to guide the frequency of visits to specialised clinics:
• WHO I: Limit visits to once during the pregnancy.
• WHO II: Follow-up every trimester.
• WHO III: Monthly or bi-monthly review by a multidisciplinary team of cardiologists and obstetricians.
• WHO IV: Advise against pregnancy or, in some
cases, recommend early termination. If the patient continues the
pregnancy, bi-monthly review is advised.
At each visit to the multidisciplinary clinic, it is important to assess for symptoms and warning signs of deteriorating cardiac function:
On history:
• Change in NYHA class or NYHA >II. (Change in effort tolerance or ability to function with regard to daily domestic tasks.)
• More medication is required to maintain current functional status.
• New symptoms, e.g. chest pain, have developed.
On examination:
• Increased PR (either a resting tachycardia or a raise after mild exertion, such as walking from waiting area into the examination room).
• Worsening oedema.
• Change in the cardiac murmur or signs of cardiac failure, such as crepitations at the lung bases or raised jugular venous pressure.
• Signs of infection (in the case of a replaced
valve or valvular CD).
Delivery
Spontaneous vaginal delivery is recommended in pregnant women
with CD. In most cases, the decision for a surgical delivery is
based on obstetric indications. A surgical (or assisted) vaginal
delivery may be indicated to reduce maternal Valsalva exertion
in the second stage of labour. In all cases, the mode of
delivery should be planned before the onset of labour and
additional anaesthetic advice obtained in cases where an
epidural procedure is indicated (e.g. mitral regurgitation) or
an emergency caesarean section is anticipated.
Anticoagulation in women with mechanical valves
Pregnancy is a state of physiological thrombophylia. The risk of valve thrombosis is increased in pregnancy and anticoagulation therapy must be continued. Warfarin is well documented to be the most effective anticoagulant and is best for the mother, giving the lowest risk of thrombosis; however, it crosses the placenta and is associated with adverse fetal outcomes, including teratogenesis (nasal hypoplasia and epiphyseal stippling), miscarriage, stillbirth and intracranial bleeding. Low molecular weight heparin (LMWH) has no risk to the fetus, but a higher risk of maternal thrombosis.
The risk of teratogenesis of warfarin is from 6 to 12 weeks’ gestation and has been documented as between 3.4% and 6%13 , 14 and as high as 11% (C Elliott – unpublished MMed data), and the risk increases with increased dosages of warfarin >5 mg/day. At 6 weeks the patient needs to be hospitalised and warfarin replaced with heparin. Continuous intravenous infusion of unfractionated heparin is recommended, keeping the partial thromboplastin time (PTT) ≥2.5 × control value. The use of therapeutic LMWH is still controversial owing to the high rate of valve thrombosis and the difficulty of monitoring therapeutic dosage and efficacy. If used, it is essential to monitor antifactor Xa levels at least weekly to ensure a 4-hour peak level of 0.8 - 1.2 U/mL. Low-dose aspirin should be used along with LMWH at a dose of 75 mg/day.
Warfarin can be restarted after 12 weeks’ gestation, ensuring the international normalised ratio (INR) is 2.5 - 3.5. Warfarin needs to be discontinued again at 36 weeks, the patient re-hospitalised, and intravenous heparin restarted. It should be discontinued 4 - 6 hours before a planned delivery, or if the patient is in established labour. Heparin infusion should be restarted 4 - 6 hours after delivery if there are no bleeding complications and if no regional anaesthetic has been given, and warfarin re-initiated between day 3 and 7 postpartum.15
The fetus
Adverse neonatal and perinatal outcomes are more common in pregnant women with CD. There is a relationship between the complexity and severity of the CD and fetal and neonatal complications.16 , 17 In general, the greater the risk posed by the mother’s CD, the greater the risk to the fetus.
It is well documented that babies born to mothers with CD are more likely to suffer one of the following complications:
• preterm delivery (this includes both iatrogenic and spontaneous preterm delivery)
• respiratory distress syndrome
• small for gestational age and low birth weight
• fetal growth restriction
• intraventricular haemorrhage
• neonatal death and stillbirth.
Maternal predictors of adverse neonatal outcome have been listed as:9 , 11
• baseline NYHA >II or cyanosis
• maternal left heart obstruction
• smoking during pregnancy
• multiple gestation
• use of oral anticoagulants
• mechanical valve prosthesis.
The potential adverse effect of maternal CD on neonatal outcome is increased if there are concurrent obstetric risk factors, including maternal age >35 years,9 although the mechanisms behind this are not fully understood. There are various explanations for the increased rate of neonatal complications, e.g. cyanosis is associated with fetal growth retardation. A decrease in maternal oxygen saturation is directly related to birth weight and perinatal mortality. Adverse perinatal outcome may be explained by the decrease in uteroplacental blood flow resulting from haemodynamic compromise in patients with CD.9 , 16 Placental insufficiency plays a role in preterm delivery, fetal growth restriction and perinatal loss in patients with a compromised functional class.9 Fetal cardiac contractility and output are adversely affected by hypoxaemia resulting from uteroplacental insufficiency.9
The association between the
abovementioned neonatal complications and cognitive and
neurodevelopmental delay has been demonstrated. This should be
included in the discussion with the patient during the
pregnancy, or at the pre-conception visit.
Conclusion
Given the importance of CD in pregnancy and the impact on
maternal and fetal mortality and morbidity, there is a clear
need for structured assessment, appropriate referral and
surveillance by a multidisciplinary team. The correct and early
identification of pregnancy-specific conditions such as
peripartum cardiomyopathy cannot be over-emphasised.
Pre-conception diagnosis, counselling and risk assessment are
ideal but, if this is not possible, correct diagnosis as early
as possible in pregnancy is absolutely vital to improve maternal
and fetal outcome.
Acknowledgements. The authors would
like to acknowledge the support of Mrs Sylvia Dennis, Hatter
Institute for Cardiovascular Research in Africa, in preparing
the manuscript. This research could not have been conducted
without the funding support of the University of Cape Town, the
Medical Research Council of South Africa, the National Research
Foundation, the Maurice Hatter Foundation and Servier. We also
wish to thank the physicians and nurses at the divisions of
Cardiology and Obstetrics and Gynaecology for their support.
References
1. National Committee on Confidential Enquiries into Maternal Deaths. Saving Mothers 2008 - 2010: Fifth Report on the Confidential Enquiries into Maternal Deaths in South Africa. Pretoria: National Department of Health, 2012. http://www.health.gov.za/docs/reports/2012/savingmothersexec.pdf (accessed 2 August 2014).
2. Jastrow N, Meyer P, Bouchardy J, Savoldelli GL, Irion O. Maternal heart disease and pregnancy: A multidisciplinary approach. Rev Med Suisse 2011;7(314):2070-2077.
3. Pieper PG. Pre-pregnancy risk assessment and counselling of the cardiac patient. Netherlands Heart Journal 2011;19(11):477-481. [http://dx.doi.org/10.1007/s12471-011-0188-z]
4. Sliwa K, Böhm M. Incidence and prevalence of pregnancy-related heart disease. Cardiovasc Res 2014 (in press).
5. Sliwa K, Ojji D, Bachelier K, Böhm M, Stewart S. Hypertension and hypertensive heart disease in African women. Clin Res Cardiol 2014;103(7):515-523. [http://dx.doi.org/10.1007/s00392-014-0660-z]
6. Anthony J. General principles and guidelines. In: Sliwa K, Anthony J, eds. Cardiac Drugs in Pregnancy. London: Springer, 2012:1-9.
7. Sliwa K, Libhaber E, Elliot C, et al. Spectrum of cardiac disease in a low resource cohort in South Africa. Heart 2014 (in press).
8. Moghbeli N, Pare E, Webb G. Practical assessment of maternal cardiovascular risk in pregnancy. Congenital Heart Disease 2008;3(5):308-316. [http://dx.doi.org/10.1111/j.1747-0803.2008.00207.x]
9. Siu SC, Colman JM, Sorensen S, et al. Adverse neonatal and cardiac outcomes are more common in pregnant women with cardiac disease. Circulation 2002;105(18):2179-2184. [http://dx.doi.org/10.1161/01.CIR.0000015699.48605.08]
10. Sliwa K, Mebaaza A. Possible joint pathways of early pre-eclampsia and congenital heart defects via angiogenic imbalance and potential evidence for cardio-placental syndrome. Eur Heart J 2014 (in press).
11. Regitz-Zagrosek V, Blomstrom Lundqvist C, Borghi C, et al. ESC Guidelines on the management of cardiovascular diseases during pregnancy: The Task Force on the Management of Cardiovascular Diseases during Pregnancy of the European Society of Cardiology (ESC). Eur Heart J 2011;32(24):3147-3197. [http://dx.doi.org/10.1093/eurheartj/ehr218]
12. Dimopoulos K, Giannakoulas G, Wort SJ, Gatzoulis MA. Pulmonary arterial hypertension in adults with congenital heart disease: Distinct differences from other causes of pulmonary arterial hypertension and management implications. Curr Opin Cardiol 2008;23(6):545-554. [http://dx.doi.org/10.1097/HCO.0b013e3283126954]
13. Vitale N, De Feo M, De Santos LS, et al. Dose-dependent fetal complications of warfarin in pregnant women with mechanical heart valves. J Am Coll Cardiol 1999;33(6):1637-1641.
14. Bates SM, Greer IA, Hirsh J, Ginsberg JS. Use of antithrombotic agents during pregnancy. Chest 2004;126:179S-187S.
15. Nelson-Piercy C. Handbook of Obstetric Medicine. 4th ed. London: Informa House, 2010.
16. Pieper PG, Balci A, Van Dijk AP. Pregnancy in women with prosthetic heart valves. Netherlands Heart Journal 2008;16(12):406-411. [http://dx.doi.org/10.1007/BF03086187]
17. Hameed A, Karaalp IS, Tummala PP, et al. The effect of valvular heart disease on maternal and fetal outcome of pregnancy. J Am Coll Cardiol 2001;37(3):893-899. [http://dx.doi.org/10.1016/S0735-1097(00)01198-0]
Article Views
Full text views: 8592
Comments on this article
*Read our policy for posting comments here
