Malaria in South Africa: 110 years of learning to control the disease
1 Wits Research Institute for Malaria, Faculty of Health Sciences, University of the Witwatersrand, Johannesburg, South Africa
2 Malaria Control Programme, Polokwane, Limpopo Province, South Africa
3 School of Public Health Medicine, University of Newcastle, New South Wales, Australia
Africa Fighting Malaria, Durban,
In Africa today, the drive
towards controlling malaria is comparable with efforts made in
the 1950s and 1960s during the World Health Organization’s
Global Malaria Eradication Campaign. Unlike the Eradication
Campaign that ‘covered’ the globe but excluded Africa, the
current endeavours focus on Africa, but not to the exclusion
of the rest of the tropical and sub-tropical world. Major
donor agencies are partnering with African governments in an
attempt to curb transmission of malaria parasites, and in some
countries on the edges of the distribution of malaria, there
is talk of eliminating the disease. South Africa is at the
very southernmost fringe of malaria distribution on the
African continent and has a long history of intense malaria
control activities. This article looks at what South Africa
has achieved in the past and where it needs to go in the
future, not only to maintain the status
quo, but hopefully
to eliminate transmission of the disease within its borders.
S Afr Med J 2013;103(10 Suppl 2):770-778.
1. The early days
The causative agent of malaria was determined in the 1890s by the individual works of Laveran, Grassi and Ross, as a parasite belonging to the genus Plasmodium and transmitted to humans by anopheline mosquitoes.1 Prior to this, fevers were associated with ‘bad air’ (in Italian ‘mal aria’), swamps and other unsavoury localities.
In South Africa (SA), the first well-documented case of the devastating effects of malaria was probably that of the Louis Trichardt trek to Maputo, Mozambique in 1837 - 1838, when 20 of the 53 members of the party died of malaria, including Trichardt’s wife. 2 , 3 Trichardt himself died of malaria 6 months later. Laidler and Gelfand,4 in their book on the medical history of SA, make brief reference to malaria being ‘a most serious ailment in the Transvaal Republic’ and in the 1830s immigrants to Natal ‘suffered great losses from malaria and other fever’.5 In those early days, of course, diagnosis was purely clinical and was based on the pattern of high fever with attendant high mortality rates.
After the discovery in the 1890s that malaria was caused by a parasite transmitted by anopheline mosquitoes, the next report on malaria in SA was by Hill and Haydon6 on the 1904/05 malaria epidemic in Natal. In Durban alone, between the end of January and end of June 1905, 4 177 cases of malaria were recorded with 42 deaths (malaria had been declared a compulsory notifiable disease in Durban in 1902).7 At the beginning of the epidemic, blood smear examination showed mainly benign tertian malaria (Plasmodium vivax), while later, as the epidemic increased, cases of severe tertian malaria (P. falciparum) became prevalent. Quinine tablets were used to treat the malaria cases. Extensive mosquito surveys found a sporozoite infection rate of 9.1% in Anopheles costalis (An. gambiae s.l.) collected inside houses and dissected within 2 days of capture. Hill and Haydon6 stated that they were ‘unable to advance any sound reason to account for this epidemic’, there being no dramatic change in climatic factors compared with previous years when no malaria transmission took place.a Their stated impression was that the larvicidal measures implemented had no apparent impact on the epidemic, and they concluded that ‘only the prophylactic use of quinine appears to give promise’. Murison,8 however, in Ronald Ross’ book ‘The Prevention of Malaria’, provided his account of the 1905 epidemic and the subsequent antimalarial activities of 1906 - 1907. He reported that the larviciding and larval source management in the borough of Durban had been very successful compared with the areas outside of the borough where malaria transmission continued unabated. After the 1905 epidemic in Natal, malaria again became rare and no cases were reported from Durban up to 1918.
Also in Ross’ book is a section on malaria control in SA along the railway line from Pretoria to Delagoa Bay (Maputo, Mozambique). Bostock9 states that no attempt was made to combat malaria until he was appointed District Surgeon in Komatipoort in 1903. He goes on to describe the most amazing and intense implementation of antimalarial measures he organised that were funded by the Central South African Railways. Every station, house and cottage from Waterval Onder to Komatipoort was mosquito-proofed, mosquito breeding habitats in the vicinity of the stations were ‘dealt with’, free quinine was available and intense larval source management carried out in the town of Komatipoort. Malaria case figures presented for 1903 - 1905 show an overall reduction of 87.5%.9
In 1921, Pratt-Johnson7 published a paper on the distribution of malaria in SA and a mosquito survey of areas around military hospitals. The military hospitals visited by Pratt-Johnson and inspected for mosquito breeding were situated in Cape Town, Durban, Potchefstroom and Pretoria (Roberts Heights, now known as Thaba Tshwane). Two specimens of An. costalis were collected from Roberts Heights as larvae, almost certainly being Anopheles quadriannulatus. This species was described and named in 1911 by F Theobald from material collected north of Pretoria and it is one of the cattle-feeding, non-vector, members of the An. gambiae complex in SA.
Flooding along the Orange River in 1909 caused a severe epidemic in the districts of Gordonia, Kenhardt and Upington (bordering on Botswana and Namibia), stretching into Namaqualand and the Kalahari, and further east into what is today the North West Province. No information was available on the mosquito populations involved in this epidemic.
A small outbreak of malaria occurred in February 1918 in a localised area in Durban, presumed to have been initiated by a group of Indians returning from East Africa and infecting locally breeding ‘An. costalis’. These cases were diagnosed on blood smears as benign tertian (P. vivax) malaria.7
In the Transvaal, vivax and falciparum malaria were
equally prevalent in the period under review, with P. vivax tending to occur more
frequently at higher altitudes on what is known as the
Middleveld, while P. falciparum was common in Lowveld areas.b
2. From the Roaring Twenties to the end of World War II
The Department of Medical Entomology was established by the
South African Institute for Medical Research (SAIMR) in 1925
under the headship of Alexander Ingram.5 He was joined in 1926 by
Botha de Meillon (Fig. 1) (later to become head of the
department from 1931 to 1960) and together they undertook the
first extensive mosquito surveys of SA covering the Transvaal
Ingram and De Meillon11 confirmed the insecticidal
properties of pyrethrum, while De Meillon12
demonstrated the powerful influence that indoor spraying with
pyrethrum would have on malaria transmission (see below), this
being the forerunner of the World Health Organization’s (WHO’s)
global malaria eradication campaign over 20 years later.
Fig. 1. Botha de Meillon (1902 - 2000), aged 80.
In 1930, two prominent malariologists visited SA. The first was Sir Malcolm Watson, a distinguished British scientist from the London School of Hygiene and Tropical Medicine, who spent most of his time fighting malaria in Malaysia. He visited SA on his way north to mining communities in Northern Rhodesia (Zambia) in July 1930. 14 His major contribution to malaria control in SA was to persuade the government that malaria had economic significance, not just medical importance.5 Malaria continued to devastate some of the richest agricultural areas in SA for another 15 years.
Professor N H Swellengrebel, another world-renowned malariologist, from the University of Amsterdam, visited SA in the latter half of 1930 and was accompanied by De Meillon and Siegfried Annecke on a tour of the Lowveld areas to investigate the malaria situation. The comprehensive report that resulted from this visit15 recommended the implementation of ‘species sanitation’, this being the specific targeting of malaria vector mosquitoes with control interventions, excluding those mosquito species not involved in malaria transmission. This required insight into the behaviour of the malaria vectors and subsequently led directly to indoor spraying with pyrethrum.13 , 16
Swellengrebel also recommended the establishment of a malaria station in Tzaneen. The SAIMR, at the request of the government, erected this station (Fig. 2) in 1932 under the leadership of De Meillon for research5 and Annecke for control.17 , 18 Another station was established in Eshowe, Natal, in 1934. These stations were to provide the basic facilities for De Meillon to demonstrate the utility of indoor spraying with pyrethrum as a highly effective measure against adult, indoor resting anopheline mosquitoes.12 , 13

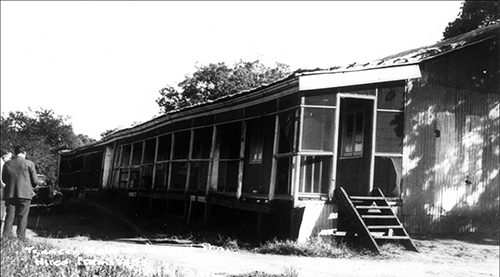

Fig. 2. The malaria station in Tzaneen, 1932.
Severe malaria epidemics occurred in Natal from 1929 to 1933. During this time, railway construction and sugar production came to a standstill and almost one million quinine tablets were distributed by the health authorities. During the 1931 malaria transmission season, cases were reported from as far south as Port St Johns and in 1932 there were 22 132 deaths from malaria.5 , 19 The 1933 Annual Report of the Union Government Department of Public Health refers to 15 malaria committees in the Natal coastal areas and voluntary farm groups in the midlands who supervised the mosquito control measures. Training courses were held for malaria inspectors and mosquito ‘spotters’. Similar measures were implemented in the rural areas where the chiefs, officials, missionaries and storekeepers were involved. By 1941/42, 35 800 huts were being sprayed weekly with pyrethrum, protecting over 100 000 people.
A Pan-African Health Conference was held in Johannesburg in 1936 under the auspices of the Health Organization of the League of Nations. Two papers were delivered describing the 1930 - 1933 major malaria epidemics in Natal and Zululand and the effects of insecticides for bringing it under control.13 , 16
Park Ross16 described in great detail the malaria control activities in place from 1930 onwards. While he was cautious in drawing conclusions from the available data, it nevertheless appeared that administration of quinine and the use of anti-larval measures were unsuccessful. Park Ross referred to larviciding as ‘wasting time’ and the distribution of quinine among a population not trained to use the drug as unreliable. On the other hand, the use of insecticide sprays had resulted in a dramatic drop in the number of malaria cases, terminating the epidemic. Furthermore, adult mosquito control was far more economical than larviciding13 and more acceptable to rural communities as it did not impact on water supplies for themselves and their cattle.
De Meillon’s13 contribution to the conference
was extremely brief, perhaps overly so, outlining controlled
experiments carried out in Eshowe from December 1934 to May
1935. A rural area was divided into 4 sections: (i)
each hut sprayed daily with pyrethrum in kerosene; (ii)
each hut sprayed bi-weekly; (iii) each hut sprayed once a week;
and (iv) unsprayed control huts. The

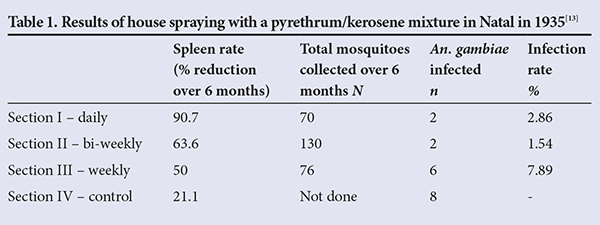

results are summarised in Table 1.
It is clear that daily spraying with pyrethrum had the most beneficial effect with a 91% reduction in the spleen rate, despite a 2.86% sporozoite rate. The economics of anti-adult spraying compared with larviciding showed that spraying cost about a third of the cost of larviciding and reduced the spleen rate by 50%. In the area being treated with larvicides the spleen rate actually went up.13
Dr Fred Soper from the Rockefeller Foundation attended this League of Nations conference and afterwards visited the malaria research station at Eshowe. He rejected the concept of vector control by indoor insecticide spraying stating that for every female anopheline that came indoors, there would be hundreds outdoors and out of reach of the insecticide.5 De Meillon’s work12 showing that the indoor resting proportion of the mosquito populations were the ones infected with parasites, was ignored. Soper, however, just a few years later, made excellent use of the very same indoor spraying strategy to rid Brazil of An. gambiae.20 He subsequently met Professor James Gear from the SAIMR at a Rockefeller Institute meeting and asked him to convey his apologies to the South African ‘malaria officers’.5
Sir Gordon Covell, on the other hand, also a participant at the League of Nations conference, immediately recognised the enormous benefits of the work being done in SA. At the time he was with the British Army in India and on his return to that country implemented a similar control strategy with great success.21
The distribution of malaria is
illustrated in a 1938 map produced by the Department of Public
Health (Fig. 3) showing the endemic areas, with epidemic malaria
occurring as far south in the Transvaal as Pretoria and in Natal
to beyond Durban.

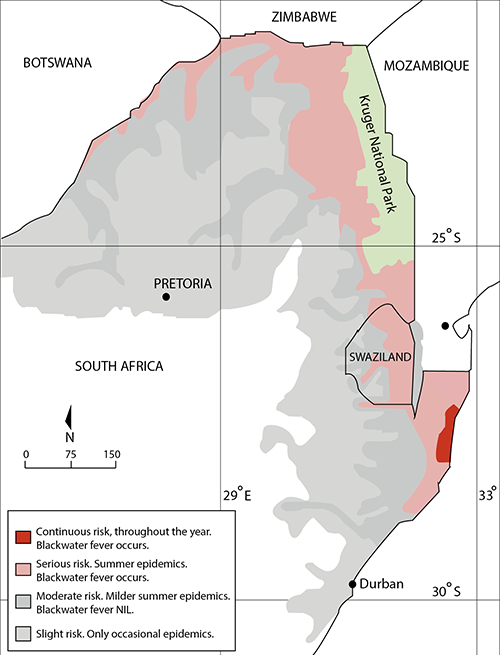

Fig. 3. Malaria in South Africa, 1938.
Prior to the Pan-African Health Conference in 1936, De Meillon had been carrying out extensive studies in the Tzaneen area of the northern Transvaal. Here he showed that the vector mosquitoes rested indoors for several days after taking a blood meal before leaving the house to lay eggs.12 This led directly to the strategy of indoor house spraying used globally when residual insecticides such as dichlorodiphenyltrichloroethane (DDT) became available after World War II.
The early work of Annecke in the Transvaal, from the time that the malaria station was established in 1932 until the early 1940s, consisted mainly of advocacy and training – teaching the communities how to protect themselves through treatment, improved housing construction, screening and insecticidal spraying. Over 600 depots were established in rural areas to provide free quinine to the communities. Annecke states: ‘Those who took notice (or who possessed the means to do so) lived mostly malaria free’. 22 The vast majority, however, suffered enormously with hundreds of deaths recorded annually throughout the Transvaal Lowveld. Annecke carried out these activities initially with the help of three health inspectors, two lady health visitors, one technical assistant and four ‘spotters’. Between 1937 and 1944 the staff complement was increased to 14 health inspectors, four lady health visitors and three technical assistants. ‘Propaganda was intensified but did not yield greatly improved results’22 and major malaria epidemics were recorded in 1939 and 1943. During the 1939 epidemic, 9 311 malaria deaths were reported in the Transvaal.
It was not until 1944 when the Farmers’ Union made urgent appeals to the government for help that things started to change. The first meeting between the Farmers’ Union representatives and the Secretary for Public Health took place on the Springbok Flats, an area devastated by the 1943 malaria epidemic to a point where huge crop losses were experienced because labour could not be found to reap the crops. Amid soaring global food prices, many farmers in this area were facing bankruptcy and land values had plummeted. 22 With a substantial grant from Treasury, Annecke, together with the local farmers, embarked on a full-scale malaria control operation using pyrethrum knockdown insecticide for adult mosquitoes (DDT being very new and in short supply) and oil for larviciding. This programme functioned for three years but malaria had already virtually vanished one year after operations began. Annecke recorded that this operation was carried out with no guidance on appropriate staffing and materials.22
Treasury almost trebled the grant
for the malaria programme in 1944/45 and Annecke rolled out
vector control to as much of the Transvaal Lowveld as existing
staffing allowed. DDT for house spraying was introduced in 1945.
The results were dramatic.
3. Post World War II, 1945 - 1950
In the spring of 1944 towards the end of World War II, field trials in the Nile Valley and Naples, Italy, demonstrated the usefulness of DDT to control malaria as well as louse-borne typhus. Initially the formula for DDT was a closely guarded military secret but a member of the South African Medical Corps, Major Neil Murray, found it in Popular Mechanics.3
The South African Government was quick to realise the potential of DDT for public health purposes and the feasibility of producing it in the country was investigated. It involved close liaison between the Departments of Public Health, Defence and Agriculture, with assistance from the British and American Governments.23 This led to the construction of a manufacturing plant at Modderfontein outside Johannesburg, where large amounts of DDT were produced. 3 Its first use in SA was to control an outbreak of typhus in the Middleburg district of the Transvaal, achieving such dramatic success that it was made freely available to people in the Transkei who were experiencing a similar outbreak. After discussion with Prof. James Gear and Dr Botha de Meillon, Dr Eksteen, Member of Parliament for Middleburg, proposed in Parliament that DDT should be used for malaria control by indoor house spraying.3
3.1 Initial trials with DDT

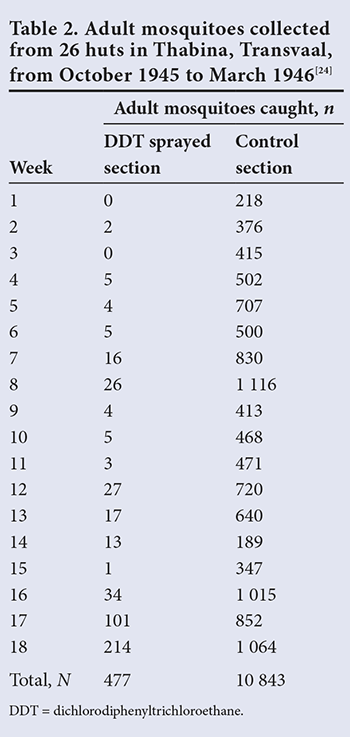

The first SA trials with DDT were conducted in the Transvaal and described by Annecke in the 1945 Department of Public Health annual report.23 He received the first shipment of DDT in mid-1944 – a very small quantity that proved to be insoluble, even in kerosene, resulting in ‘no conclusive work’. At the beginning of 1945, a new formulation was received resulting in less clogging of the spray pumps. Between October 1945 and June 1946, extensive field trials were conducted in various localities around Tzaneen. A comparison was made between DDT sprayed and unsprayed huts at Thabina, with a considerable reduction in vectors caught in the huts (Table 2). Cost comparisons were also made between DDT spraying and weekly pyrethrum spraying, indicating that weekly spraying was up to 20 times more expensive than DDT spraying. The results of the Thabina trials, as well as similar trials at Hlabisa in Zululand comparing DDT with weekly pyrethrum spraying (Table 3), were published in 1946. 24 This report concluded: ‘Experiments so far carried out indicate that the application of a 5 per cent DDT solution (in kerosene) offers a more economical and effective method of malaria (mosquito) control in … rural areas than any other method previously tried by this Department’.24
During these trials, comparisons were also made between DDT 5% in kerosene and malaria oil, both used as larvicides. These trials also included experimental attempts to spray DDT on water by means of an aircraft. The results of these trials were inconclusive, as it did not demonstrate residual benefits of DDT.
The results of these studies paved the way for introducing and expanding vector control in 1946 through indoor residual spraying (IRS), offering far better results than previously achieved through weekly indoor space spraying. The coverage was extended to areas not formerly controlled including many rural areas.25 Annecke summarised the malaria control programme in the Transvaal as follows:22
• ‘Larviciding (using oil, but busy replacing oil with DDT emulsion) applied fortnightly in summer to all breeding places and monthly in winter, to the proven winter breeding sites’.
• ‘Larviciding is
combined with the use of a residual insecticide. 5% DDT in
kerosene was used in westernised houses, with 50% DDT wettable
power in traditional houses. DDT was applied every 3 to 4
months. In the epidemic prone or low risk areas, DDT was used
alone, applied once or twice a season’.
In the Transvaal, the operations were mostly implemented by the Union Department of Public Health, with a vertically structured malaria control unit, administratively divided into five zones. In Natal, malaria control was implemented through ‘Statutory Malaria Committee’ areas, with activities paid through refunds to the committees, by the Department of Public Health.
The other major contribution made by De Meillon in these early
years was the detailed descriptions of the anopheline mosquitoes
of sub-Saharan Africa.26
27 These works were
invaluable for the malaria vector control programmes’
surveillance activities, enabling accurate identification of the
4. The eradication era, 1950 - 1970
The impact achieved through of IRS of houses was widely lauded
and documented. Various indicators were used to demonstrate the
successes, among these a reduction in vectors collected in
dwellings, decline in the use of quinine, parasite and spleen
rates, and the economic benefits. In 1951, Annecke reported
extensively in the Department of Public Health’s annual report
on the impact of IRS in the Transvaal.28 The use of 5 grain quinine
tablets dropped from 2 000 000 in 1943/44 to

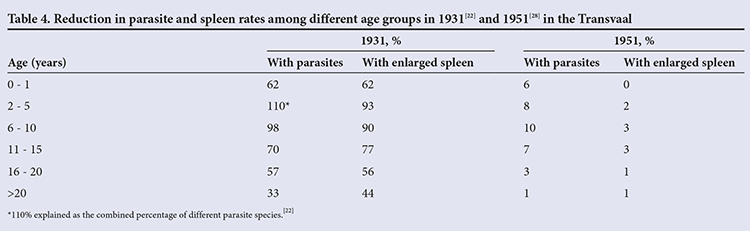

94 000 in 1950/51. The dramatic decline in parasite and
spleen rates between 1931 and 1951 is shown in Table 4. This was
based on blood smears taken from the local population at the
peak of the malaria season outside Tzaneen, Transvaal.
In 1952, the Minister of Health for the Union of SA, gave a radio broadcast on the economic benefits modern malaria control had brought to the Transvaal: ‘… 10 000 square miles containing some of the country’s richest farming land in the world for sub-tropical fruit; yet only fifteen years ago this area was shunned by Europeans, and those [locals] who survived to young adult life lay ill in the kraal just when they should have been reaping their crops. In the hyper-endemic zones of Pongola – a few years ago almost a deserted region – the disappearance of malaria gives a fair chance that within five years the area will be producing about 20% of the sugar cane grown in the Union’.29
Several threats to the continued success of the malaria control programme were perceived, among these vector resistance to insecticides and parasite resistance to treatment. Cross-border malaria was also highlighted as a major threat for the ongoing programme success. In the Transvaal, transmission was affected by poor control in Bechuanaland (Botswana), Southern Rhodesia (Zimbabwe), Mozambique and Swaziland. In Natal, the impact that uncontrolled areas were having on controlled areas was reported on many occasions. In 1953, an outbreak in the Nongoma and Hlabisa districts in Natal was attributed to the lack of control in the adjacent rural areas, as Malaria Committees were not in place in these areas. This prompted the expansion of control measures to Ubombo and Ingwavuma in 1953. By 1956, malaria infections had been reduced to negligible figures.30
Towards the end of 1959, a WHO assessment team visited the malarious provinces in SA and a full appraisal of the malaria situation in the country was made, with resulting recommendations towards the eradication of malaria in the country.31
The assessment team recommended that Natal be divided into three zones, namely the transmission zone (northern parts of Natal), the consolidation zone and the vigilance zone. For the transmission zone, the full-scale attack phase of an eradication programme was recommended, with total residual insecticide house spraying coverage throughout the area. The high levels of malaria in southern Mozambique were highlighted as a threat. As the border with Mozambique was only a geographical boundary line, free movement of people took place, without any administrative formalities. The establishment of checkpoints along the Mozambique border, to intercept migrants and administer treatment was considered. Mozambique was also preparing to introduce a malaria eradication programme, which would provide protection to Natal.
For the consolidation zone, IRS was to be discontinued and retained only as an emergency measure, with the implementation of a surveillance system. As there was no evidence of malaria transmission in the vigilance zone, from 1954 this area was considered to be clear of malaria with ongoing surveillance recommended.
For malaria control purposes, the Transvaal was divided into four zones as confirmed by the WHO team, with malaria transmission only occurring in zone 1 (the north-eastern Lowveld areas) and zone 4 (Bushbuckridge, Nelspruit, Komatipoort and Barberton). In the other two zones, only sporadic cases of malaria were reported, with spraying discontinued and control maintained through selective larviciding. However, with the influx of parasite carriers from Zimbabwe and Mozambique still occurring, the need for implementing malaria eradication projects in these neighbouring countries as part of the south-east Africa malaria eradication programme was essential. It was recommended that IRS be continued in the transmission zones and that the cessation of IRS should depend upon progress in the adjacent countries.
All research on malaria vectors had ceased with the
widespread implementation of IRS in the 1950s. De Meillon had
been told by the Director of the SAIMR to stop working on
mosquitoes because the malaria problem had been solved (Botha
de Meillon, personal communication). Elsewhere in Africa,
however, interesting observations were being made on the
vector mosquitoes that would lead to a much better
understanding of apparent ‘failures’ of vector control in
southern Africa. Among these pioneers was a South African,
Hugh Paterson (Fig. 4), working then for
the SAIMR arbovirus unit, who in his spare time studied
malaria mosquitoes. He was one of the key figures in
unravelling the An. gambiae
complex, demonstrating that at least three fresh-water
breeding species existed and that one of them fed only on
cattle and did not transmit malaria.32
This formed the basis for all subsequent research on these
important vectors and explained anomalies like that found in
Swaziland where indoor spraying had apparently caused the
mosquitoes to change their behaviour from biting humans
indoors to biting cattle outdoors.
Fig. 4. From left, Hugh Paterson, Botha de Meillon and Gideon van Eeden, circa 1980.
From 1960 to 1966, the endemic malaria areas in the Transvaal and Natal experienced a severe drought. As the conditions did not favour the breeding of vector mosquitoes, malaria was at very low levels during this period. After the prolonged drought, heavy rains fell in 1967, resulting in conditions favouring the breeding of An. gambiae in temporary pools and An. funestus in small perennial streams. A sharp, but restricted epidemic occurred in the Komatipoort area of the eastern Transvaal, the first since the mass control campaign was undertaken in 1945.3 , 33 In 1969, malaria transmission increased in the north-eastern Transvaal where house spraying had been discontinued due to the low number of cases. House spraying with DDT was reintroduced but the lack of qualified and experienced entomological personnel was recognised as a major problem. Mr Gideon van Eeden (Fig. 4), having just returned from Swaziland where he obtained extensive entomological training under Dr O Mastbaum, was the only employee available to undertake entomological monitoring.
5. Malaria under control, 1970 - 1995
Widespread rains over a prolonged period in 1971 - 1972 resulted in a severe and extensive epidemic during 1972.c Due to insufficient personnel and delays caused by the rain, house spraying was not completed and patients with malaria could not be adequately traced. In the Komatipoort area, the sugar cane industry was being constructed with land clearing providing suitable larval breeding habitats. Migrant workers housed themselves in plastic bag shelters and were exposed to vectors. Over 3 700 indigenous malaria cases were confirmed throughout the Transvaal and at the peak of the epidemic, 600 infections were confirmed in a single week from Komatipoort.
The epidemic sparked a debate in the National Assembly. While the Minister of Health explained the epidemic as being ‘under control’, he did commit to visiting the malaria control areas and proposed the strengthening of the programmes. There was also an undertaking to take the matter up with the neighbouring countries Mozambique and Rhodesia (Zimbabwe), as these two countries appeared to contribute to the problems in SA.d
This resulted in the number
of malaria teams being almost doubled and allowed for the
construction of an insectary at Tzaneen in 1972. It also
resulted in a visit from the WHO, whose representatives spent
a week in the northern Transvaal assessing the situation. The
outcome was that three senior WHO personnel were posted to
Tzaneen from 1973 to 1976 – a medical malariologist (Dr J
Lilyveld), an entomologist (Dr A Smith) and a
malaria technical officer seconded from USAID (Mr J Thompson).
In 1973, the National Department of Health (DoH) revived the
‘malaria office’ at Tzaneen with a medical officer (Dr Frank
Hansford; Fig. 5), two entomologists (Dr Neethling du
Toit and Mr Gideon van Eeden) and field and laboratory staff
to assist the WHO team. The Tzaneen ‘malaria office’ became
known locally as the ‘Siegfried Annecke Institute’, but was
officially named the National Institute for Tropical Diseases
in 1979, and was responsible for malaria control in all the
malarious regions of SA. At the same time, Botha de Meillon,
then in his 70s, was employed as a consultant to assist with
entomological investigations. Capacity for identifying the
members of the An. gambiae complex was increased through
the establishment of an electrophoresis laboratory in Tzaneen,
set up with the help of the Rhodesian entomologists who had
developed the method.34 Chris Green (Fig. 6) and
Richard Hunt (Fig. 7) subsequently joined the Department of
Medical Entomology, SAIMR, in 1978, thereby strengthening the
research capacity on malaria vector mosquitoes. Further
capacity for entomological research was created by the SA
Medical Research Council (MRC) at their Research Institute for
Diseases in a Tropical Environment in Durban. Brian Sharp was
employed in 1980 and was later joined by David le Sueur (Fig.
7). Together, they set up the Lubombo Spatial Development
Initiative (LSDI) Malaria Control Programme in 1999, described
Fig. 6. Chris Green (1942 - 1997).
Fig. 7. From left, Richard Hunt (SAIMR), Dave le Sueur (SA Medical Research Council (MRC)), Ed Hartwig (Department of Health (DoH)), Debbie Walpole (University of the Witwatersrand), Jan Jansen (DoH), Dirk Theron (DoH), Brian Sharp (MRC), Hugh Paterson (University of the Witwatersrand), circa 1984.
In 1978, again following heavy rains, a severe epidemic occurred in an unsprayed area, Bolubedu, east of Tzaneen, with 1 468 cases reported in April of that year. Again, additional resources were made available for malaria control, this time to the Lebowa government (one of the newly established ‘homelands’).35 Subsequent to the outbreak, all dwellings were sprayed and in spite of extensive surveillance, no infections were found the next year.
Apart from these two
epidemics, malaria cases seldom exceeded the 4 000 case
level until the mid-1980s when: (i) chloroquine drug resistance
was detected in the parasites in Natal,36-38 and (ii)
migration from Mozambique increased due to political
disturbances in that country (Fig. 8). This resulted in annual
cases being consistently over 6 000 for six consecutive
years, reaching over 10 000 in two of them. Once
first-line treatment in Natal was changed to
sulphadoxine-pyrimethamine malaria transmission reverted
briefly to previous levels (Fig. 8), but resurged again in
1993 when chloroquine resistance was detected in the Transvaal
and climatic conditions favoured mosquito breeding.

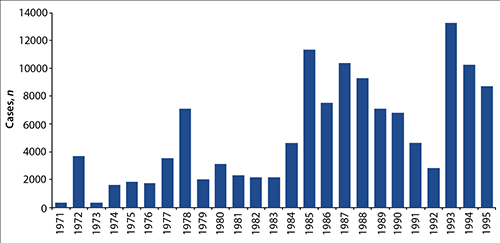

Fig. 8. Malaria case data 1971 - 1995 (data from the National Department of Health and unpublished documents).
In the 1980s, new insecticides became available for malaria vector control. Synthetic pyrethroids were developed for both IRS of houses and for treating bednets, while carbamates were adapted for house spraying. Pyrethroids in particular were tested extensively for their residual efficacy to see if they could replace DDT, which had become unacceptable to the local communities because of increased resistance in the bedbug populations39 and the marks left on the walls after spraying.40 , 41 DDT had also received negative press regarding its persistence in the environment and in the food chain. By 1994, the SA National Malaria Control Programme had decided to change policies and switch from DDT to pyrethroids for IRS, and this change came into effect in 1995.42
Also, in 1994 there was a change of government in SA, with a redrawing of the provincial boundaries resulting in the central malaria control programme run from Tzaneen being devolved to the four malarious provinces: KwaZulu-Natal (KZN), Mpumalanga (former Eastern Transvaal), Limpopo (former Northern Transvaal) and North West (former South-Western Transvaal and Northern Cape) provinces. Kobus la Grange, one of the managers for the Mpumalanga programme, subsequently went on to manage Phase 2 of the LSDI programme in Mozambique before his death in 2009.
The DoH established a Malaria
Advisory Group in 1994 comprising of the SA Malaria Control
Programme manager under the leadership of Dr Neil Cameron,
Director for Communicable Diseases, key control programme
personnel such as the regional managers and entomologists,
research institutions and the military. Prof. Jan van den Ende,
the Director of the SAIMR, chaired the committee. This group
provided guidance and advice on malaria control policy and
strategy and was to play a key role in the epidemic of
6. 1996 - present
Along with the policy change in 1995 to move away from the use
of DDT for IRS, border controls were relaxed, particularly on
the northern KZN/Mozambique border, resulting in many rural
Mozambicans travelling to SA in search of treatment for illness,
including malaria. Rainfall was also particularly good during
this period. This combination of events saw the number of
malaria cases leap from 8 750 in 1995 to 27 035 in
1996 and remain there for the next two years (Fig. 9). In
1999, the number of cases doubled to 51 444 and in 2000 hit
a peak of 64 622, the highest number of cases recorded
since the introduction of DDT for IRS.
Fig. 9. Malaria cases in South Africa, 1995 - 2012 (data from the National Department of Health).
Entomological investigations carried out in northern KZN Province by Keith Hargreaves, in collaboration with entomologists from the SAIMR, showed that An. funestus had returned to SA and was resistant to the pyrethroids being used for IRS.43 Out of 52 mosquitoes collected along the Mozambique border, 5.4% were infected with P. falciparum. Furthermore, in 2000 it was shown that the first-line drug for treatment of malaria in SA, SP, was failing. On the recommendation of the Malaria Advisory Group, DDT was reintroduced for the spraying of traditional structures, while pyrethroids were maintained for westernised housing, effectively implementing a mosaic strategy for resistance management. The following year, artemisinin-containing combination treatment (ACT) was introduced for treatment of the disease.
SA’s decision to reintroduce DDT to control the epidemic was
made in the face of considerable pressure against the
insecticide, and indeed against all insecticides. Similarly, the
country’s decision to adopt the use of ACT was made at a time
when the WHO had not changed official treatment policy, and did
not issue new treatment guidelines for another 6 years. Not only
had the WHO encouraged countries to reduce their reliance on
insecticides, no major donor agency would sanction the use of
DDT in any IRS programme. In 2000, at the height of SA’s malaria
epidemic, the Stockholm Convention on Persistent Organic
Pollutants, held its fifth and final negotiating committee
meeting in Johannesburg. National government, with the
assistance of international scientists and an independent
advocacy group, succeeded in securing an exemption for not only
the South African National Malaria Control Programme but all
national malaria control programmes wishing to use DDT for
malaria vector control purposes.
6.1 The Lubombo Spatial Development Initiative
The LSDI Malaria Control Programme was officially inaugurated in October 1999 by the signing of a protocol by the Ministers of Health of the three countries: SA, Swaziland and Mozambique. The signing of this protocol established the Regional Malaria Control Commission, comprised of malaria scientists and control and public health specialists from the three countries. The overall objective of the LSDI was to reduce the incidence of malaria in Maputo Province in southern Mozambique and thus contribute to its reduction in the adjoining border areas of SA and Swaziland. Under the leadership of Brian Sharp from the MRC, this programme was rolled out with the financial support of the Global Fund to Fight AIDS, TB and Malaria. Initially, vector control using IRS of houses with pyrethroids was planned. However, subsequent to the demonstration by SAIMR and KZN entomologists in northern KZN Province that the An. funestus vector population was highly resistant to pyrethroids,43 work was carried out by Richard Hunt and Graham Kloke at the Mozal Aluminium Smelter in Maputo, Mozambique, confirming both pyrethroid and carbamate resistance in An. funestus populations in southern Mozambique.44 Nevertheless, bendiocarb was used for IRS in southern Mozambique starting in 2000. Despite the fact that the An. funestus population showed low levels of resistance to bendiocarb, during the period 1999 - 2005 the parasite prevalence rate in the human population decreased from 65% to 4%.45
6.2 Capacity building and other regional collaboration
The African Regional Office of the WHO created the African Network for Vector Resistance (ANVR) in 1999. This initiative was used to increase awareness of insecticide resistance in the vector mosquitoes in all the malarious countries in the WHO-Afro Region. Training courses in vector resistance and resistance management were held at the SAIMR in Johannesburg annually from 2000 to 2003 for Anglophone countries, while similar courses were held in Cameroon for French-speaking countries. Approximately 80 people from 40 African countries were trained in basic vector control entomology during this initiative.
South Africans have been key participants in many expert
regional and international committees over the decades. These
began with De Meillon and Park Ross’ participation in the League
of Nations meetings prior to World War II and De Meillon’s
appointment as a WHO consultant in Brazzaville in the 1960s.
Currently, SA is represented on the Roll Back Malaria Vector
Control Working Group (M Coetzee and R Maharaj), the Stockholm
Convention DDT Expert Committee and the WHO Global Malaria
Programme’s Technical Expert Group (M Coetzee), and the WHO
Global Malaria Programme’s Treatment Guidelines group (K
Barnes). The SA National Malaria Control Programme personnel
participate on SADC and WHO/AFRO committees that consider
malaria as a regional problem. Not least, the immensely popular
SA singer, Yvonne Chaka Chaka, holds the appointment of UN
Goodwill Ambassador for Malaria.
Over the past 100 years, SA has made enormous strides in
controlling the transmission of malaria, particularly since
World War II and the advent of DDT for house spraying. Probably
the most important lesson learned over the years has been the
need for constant vigilance and surveillance of vectors and
parasites. Where these have faltered, we have seen increases in
transmission, sometimes dramatically so, as in the 1999 - 2000
1. Harrison G. Mosquitoes, Malaria and Man: A History of the Hostilities since 1880. London: John Murray, 1978.
2. Fuller C. Louis Trichardt’s Trek Across the Drakensberg, 1837-1838. Cape Town: The Van Riebeeck Society, 1932.
3. Gear JHS. Malaria in South Africa: Its history and present problems. South Afr J Epidemiol Inf 1989;4:63-66.
4. Laidler PW, Gelfand M. South Africa: Its Medical History. Cape Town: Struik, 1971.
5. Malan M. In Quest of Health. The South African Institute for Medical Research 1912 - 1973. Johannesburg: Lowry Publishers, 1988.
6. Hill E, Haydon LG. The epidemic of malaria fever in Natal. J Hyg 1905;5:467-484. [http://dx.doi.org/10.1017/S0022172400006781]
7. Pratt-Johnson J. The distribution of malaria in South Africa and a mosquito survey of military hospital areas. J Hyg 1921;19:344-349. [http://dx.doi.org/10.1017/S0022172400007932]
8. Murison P. Epidemic of Malaria in Durban, 1905-1907. In: Ross R, ed. The Prevention of Malaria. Section 56. London: John Murray, 1910:549-553.
9. Bostock L. Malaria in South Africa. In: Ross R, ed. The Prevention of Malaria. Section 55. London: John Murray, 1910:543-548.
10. Ingram A, De Meillon B. A mosquito survey of certain parts of South Africa, with special reference to the carriers of malaria and their control. Parts I and II. Publ S Afr Inst Med Res 1929;4:1-179.
11. Ingram A, De Meillon B. Efficacy of certain reagents as destructors of flies when used in the form of a spray. J Med Assoc S Afr 1927;1:366-369.
12. De Meillon B. Entomological studies. Observations on Anopheles funestus and Anopheles gambiae in the Transvaal. Publ S Afr Inst Med Res 1934;6:195-248.
13. De Meillon B. The control of malaria in South Africa by measures directed against adult mosquitoes in habitations. Quart Bull Hlth Org L o N 1936;5:134-137.
14. Anonymous. Prevention of malaria. Foreign Letters. J Am Med Assoc 1930;742.
15. Swellengrebel NH, Annecke S, De Meillon B. Malaria investigations in some parts of the Transvaal and Zululand. Publ S Afr Inst Med Res 1931;4:245-274.
16. Park Ross GA. Insecticide as a major measure in control of malaria, being an account of the methods and organisations put in force in Natal and Zululand during the past six years. Quart Bull Hlth Org L o N 1936;5:114-133.
17. Union of South Africa. Annual Report of the Department of Public Health. Pretoria: Government Printer, 1932.
18. Union of South Africa. Annual Report of the Department of Public Health. Pretoria: Government Printer, 1933.
19. Le Sueur D, Sharp BL, Appleton CC. Historical perspective of the malaria problem in Natal with emphasis on the period 1928-1932. S Afr J Sci 1993;89:232-239.
20. Soper F, Wilson DB. Anopheles gambiae in Brazil, 1930 to 1940. New York: Rockefeller Foundation, 1943.
21. Covell G, Mulligan HW, Afridi MK. An attempt to control malaria by the destruction of adult mosquitoes with insecticidal sprays. J Malar Inst India 1938;1:105-113.
22. Annecke S. Report on malaria control in Transvaal. Unpublished document WHO/MAL.48. Geneva: World Health Organization, 1950.
23. Union of South Africa. Annual Report of the Department of Public Health. Pretoria: Government Printer, 1945.
24. Union of South Africa. Annual Report of the Department of Public Health. Pretoria: Government Printer, 1946.
25. Union of South Africa. Annual Report of the Department of Public Health. Pretoria: Government Printer, 1947.
26. De Meillon B. Illustrated keys to the full-grown larvae and adults of South African anopheline mosquitoes. Publ S Afr Inst Med Res 1931;4:275-375.
27. De Meillon B. The Anophelini of the Ethiopian geographical region. Publ S Afr Inst Med Res 1947;49.
28. Union of South Africa. Annual Report of the Department of Public Health. Pretoria: Government Printer, 1951.
29. Union of South Africa. Annual Report of the Department of Public Health. Pretoria: Government Printer, 1952.
30. Nethercott AS. Forty years of malaria control in Natal and Zululand. S Afr Med J 1974;48:1168-1170.
31. World Health Organization. Report of the Malaria Assessment Team on the present situation in the Northern Transvaal and Natal. Unpublished WHO documents. Geneva: World Health Organization, 1960.
32. Paterson HE. Direct evidence for the specific distinctness of forms A, B and C of the Anopheles gambiae complex. Riv Malariol 1964;43:191-196.
33. Hansford CF. Recent trends in the control and treatment of malaria. S Afr Med J 1972;46:635-637.
34. Mahon RJ, Green CA, Hunt RH. Diagnostic allozymes for routine identification of adults of the Anopheles gambiae complex (Diptera: Culicidae). Bull Entomol Res 1976;66:25-31. [http://dx.doi.org/10.1017/S0007485300006465]
35. Mphahlele M. Lebowa dilemma – the 1978 Malaria Epidemic. S Afr Med J 1980;54:1023.
36. Freese JA, Sharp BL, Ngxongo SM, Markus MB. In vitro confirmation of chloroquine-resistant Plasmodium falciparum malaria in KwaZulu. S Afr Med J 1988;74:576-578.
37. Hansford CF. Chloroquine resistance in Plasmodium falciparum in KwaZulu 1983-1988. S Afr Med J 1989;76:546-547.
38. Herbst JM, Taylor LA, Joubert SM. In vitro chloroquine-resistant Plasmodium falciparum malaria in the Natal/Kwazulu area. S Afr Med J 1985;68:749-750.
39. Newberry K, Jansen EJ, Quann AG. Bedbug infestation and intradomiciliary spraying of residual insecticide in KwaZulu, South Africa. S Afr J Sci 1984;80:377.
40. Govere JM, Durrheim DN, Kunene S. Malaria trends in South Africa and Swaziland and the introduction of synthetic pyrethroids to replace DDT for malaria vector control. S Afr J Sci 2002;98:19-21.
41. Maharaj R, Mthembu DJ, Sharp BL. Impact of DDT re-introduction on the malaria transmission in KwaZulu-Natal. S Afr Med J 2005;95:871-874.
42. Coetzee M. Malaria and dengue vector biology and control in southern and eastern Africa. Chapter 9. In: Knols BGJ, Louis C, eds. Bridging Laboratory and Field Research for Genetic Control of Disease Vectors. Wageningen: UR Frontis Series No. 11, 2005;101-109. http://library.wur.nl/ojs/index.php/frontis/article/view/1189 (accessed 9 August 2013).
43. Hargreaves K, Koekemoer LL, Brooke BD, Hunt RH, Mthembu J, Coetzee M. Anopheles funestus resistant to pyrethroid insecticides in South Africa. Med Vet Entomol 2000;14:181-189. [http://dx.doi.org/10.1046/j.1365-2915.2000.00234.x]
44. Brooke BD, Kloke G, Hunt RH, et al. Bioassay and biochemical analyses of insecticide resistance in southern African Anopheles funestus (Diptera: Culicidae). Bull Entomol Res 2001;91:265-272. [http://dx.doi.org/10.1079/BER2001108]
45. Sharp BL, Kleinschmidt I, Streat E, et al. Seven years of regional malaria control collaboration – Mozambique, South Africa, and Swaziland. Am J Trop Med Hyg 2007;76:42-47.
Full text views: 11773
