Functional MRI language mapping in pre-surgical epilepsy patients: Findings from a series of patients in the Epilepsy Unit at Mediclinic Constantiaberg
1 MRC/UCT Medical Imaging Research Unit, Department of Human Biology, University of Cape Town, South Africa
2 Department of Neurology, Stellenbosch University, South Africa
3
Department of Neurology, University of Cape
Town, South Africa
Background. Functional magnetic resonance imaging (fMRI) is commonly applied to study the neural substrates of language in clinical research and for neurosurgical planning. fMRI language mapping is used to assess language lateralisation, or determine hemispheric dominance, and to localise regions of the brain involved in language. Routine fMRI has been introduced in the Epilepsy Unit at Mediclinic Constantiaberg to contribute to the current functional mapping procedures used in pre-surgical planning.
Method. In this paper we describe the language paradigms used in these routine studies as well as the results from 22 consecutive epilepsy patients. Multi-subject analyses were performed to assess the reliability of activation patterns generated by two language mapping paradigms, namely a verb generation task and passive listening task. Results from a finger-tapping task are also presented.
Results. The paradigms generate reliable and robust signal changes, enabling both the lateralisation of language and localisation of expressive and receptive language cortex.
Conclusion. The fMRI results are meaningful
at the group and individual level and can be recommended for
language mapping in pre-surgical patients.
S Afr Med J 2013;103(8):563-567.
DOI:10.7196/SAMJ.6336
The surgical treatment of medically intractable epilepsy is effective in controlling seizures.1 , 2 Language mapping is a critical part of the pre-surgical evaluation of patients to determine hemispheric dominance and identify areas involved in language. Localising eloquent regions means that they may be preserved in surgery to avoid post-operative aphasia, while maximising the area of resection to obtain the optimal seizure outcome.
Traditional methods used to lateralise language function include neuropsychological testing and Wada testing. The Wada test, or intra-carotid amytal procedure (IAP), has been considered the gold standard for lateralising language.3 The procedure involves injecting a barbiturate into the carotid artery to anaesthetise one hemisphere at a time, during which memory and language tests are conducted to assess the functional reserve of the contralateral hemisphere. Although the test has been shown to be reliable, it is invasive, costly, time-consuming and carries a risk of stroke and death.4 In recent years functional magnetic resonance imaging (fMRI) has been increasingly applied as an alternative method of determining hemispheric dominance, since it is safer and more cost-effective and generates a continuous measure of language. Results of language fMRI and the IAP have been concordant in a large majority of individuals with epilepsy.5-7 In a meta-analysis of 23 studies including 442 epilepsy patients, the sensitivity and specificity of fMRI for atypical language dominance, compared with the Wada test, were 83.5% and 88% respectively.8
The task of localising cortical areas critical to language is more challenging. Electrocortical stimulation (ECS) remains the most reliable technique, even with the advancements in fMRI. In ECS electrical current is applied to the cortex, either via subdural electrodes extra-operatively, or directly to the cortex intra-operatively. Electrical current inhibits neuronal activity in the language cortex. Clinical tests are conducted during the application of electrical current to assess the effects of loss of function in the cortical region stimulated. It is generally agreed that while fMRI identifies cortical regions involved in language, ECS identifies those critical to the function.9
fMRI language mapping in epilepsy patients relies on blood oxygen level-dependent (BOLD) contrast. This contrast measures changes in haemodynamic response related to neuronal energy consumption on T2*-weighted MR images while an expressive or receptive language task is being performed.10 Functional paradigms are designed as either blocked or event-related tasks. Blocked paradigms consist of a series of alternating active and passive conditions and the method is statistically robust since the signal acquired for each condition is high. Using a general linear model, regions are identified where changes in the T2*-weighted signal are temporally correlated with the active and passive conditions of the task. Active and passive conditions are contrasted in the analysis, to identify the regions that demonstrate greater activity during active conditions than passive ones. The identified regions are visualised on a T1-weighted MR image and interpreted as being involved in the function performed during the task. Once activation maps have been produced, hemispheric dominance is assessed by either counting the active voxels (volumetric pixels representing a value in 3-dimensional space) at a specified threshold in each hemisphere, or assessing BOLD signal changes in pre-defined anatomical regions. Findings from threshold-independent measures have been shown to correlate most strongly with other lateralisation techniques, such as the Wada test.11 , 12

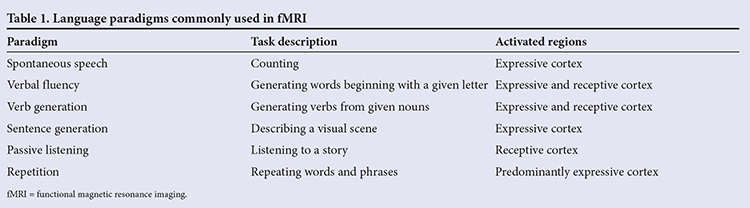

Language is a complex task relying on a number of discrete but interacting cognitive processes that recruit a distributed network of brain regions. Therefore, it is recommended that multiple language tasks be administered in fMRI in order to calculate language dominance as a continuous variable.13 In localising language function, several tasks have been shown to reliably activate expressive and receptive language cortex (Table 1). Generally, verbal fluency paradigms require expressive language and secondarily, language comprehension and therefore activations are noted in Broca’s areas and Wernicke’s area in the dominant hemisphere, in addition to pre-motor cortex, posterior fusiform gyrus, middle temporal gyrus and dorsolateral prefrontal cortex.11 Paradigms of passive listening have been shown to reliably activate receptive cortex.11 Receptive language paradigms commonly show bilateral activation in the posterior superior temporal gyri.14
Routine fMRI of language in pre-surgical epilepsy patients has been introduced in the Epilepsy Unit at Mediclinic Constantiaberg. These studies contribute to the broader functional mapping protocol and are used to guide ECS and assist in surgical planning. Several language tasks were tested in a series of 6 epilepsy patients and 2 healthy controls prior to finalising the routine language protocol, to identify the tasks that most reliably produced signal changes in eloquent cortex. Theses tasks included counting, verbal fluency, verb generation and passive listening and were designed in accordance with how they are commonly used in other centres.14-16 The verb generation and passive listening tasks produced the most robust and reliable signal changes in these studies. The findings from a series of subsequent language fMRI studies are presented in Table 1.
Methods
fMRI results from one motor-mapping task and two
language-mapping tasks in 22 consecutive patients were included
in multi-subject analyses. Results of the finger-tapping task

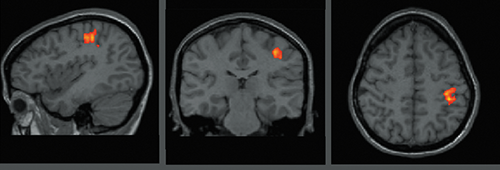

have been included here (Table 3 and Fig. 2) to demonstrate the
validity of the blocked paradigm and the satisfactory
participation of the patients, since BOLD signal changes during
motor tasks are highly reliable and robust. In addition, active
participation in the task can be directly observed, unlike in
language tasks. Each patient performed these tasks in single
scanning sessions. This is a retrospective analysis of clinical
data, collected at our centre as part of the routine
pre-surgical evaluation of patients with epilepsy. Patient

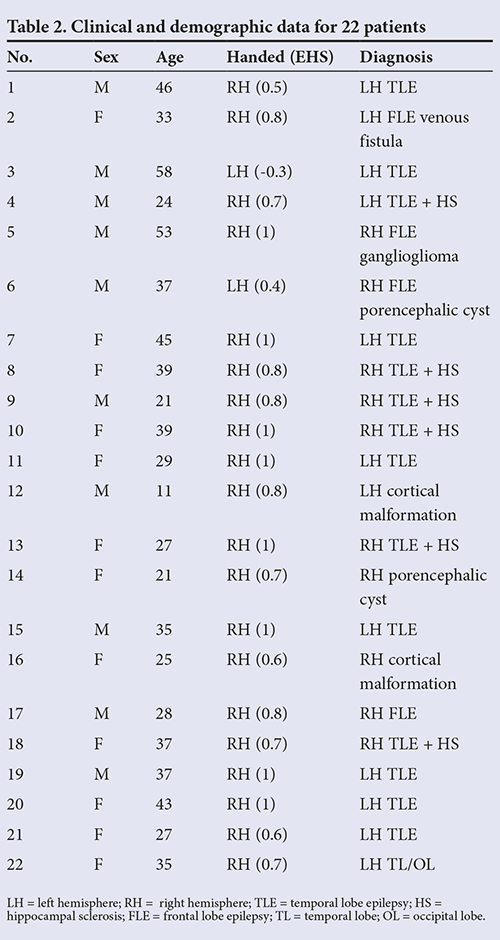

demographics are outlined in Table 2.
Procedures
Routine fMRI was conducted according to a standard procedure.
Before their imaging sessions patients were given an information
sheet, describing the procedure and the tasks to be
administered. Patients were briefed again on arrival at the
imaging centre, the tasks were rehearsed and patients were given
an opportunity to raise queries. All patients completed the
Edinburgh Handedness Inventory (EHI)17 as a self-reported measure
of hemispheric dominance. All tasks were designed in blocked
sequences and administered via audio facilities, with patients
wearing the standard MR headphones.
Functional paradigm
The three tasks share a common blocked design, modelled
on previously described functional imaging paradigms11
(see Fig. 1). Each task began with a 20 s rest period followed
by 10 alternating rest and active 20 s blocks to total 3:40
minutes. In the active condition of the finger tapping task,
patients were signalled, with the word ‘tap’, to tap the
fingers of a given hand until instructed to stop. Patients
then rested the hand in the control condition. In the active
condition of the verb generation task, nouns were presented at
3 s intervals (7 per block) and the patients were required to
think of a verb semantically related to the noun (i.e. ‘what
to do with’) (see Fig. 3). Patients were instructed to
generate the verb silently and not to mouth the word or speak,
in order to restrict motion artifact. Stimuli in the control
condition consisted of high and low tones to engage auditory
processing and attention. Patients were instructed to listen
to the tones attentively. In the active condition of the
passive listening task, patients listened to a story being

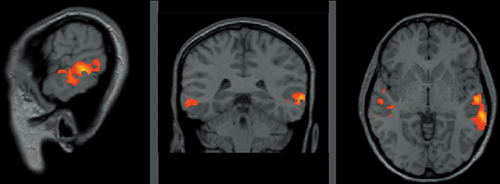

read by the administrator (see Fig. 4). Stimuli in the control
condition consisted of high and low tones to engage auditory
processing and attention. The patients were instructed to
listen to the tones attentively.

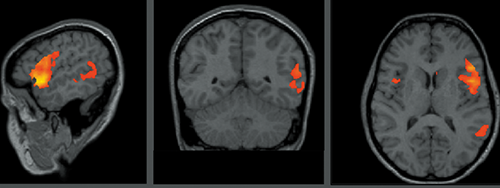

Fig. 3. BOLD signal increase produced in the group analysis of the verb generation task showing activation in left posterior inferior frontal gyrus (Broca’s area) and left superior temporal gyrus (Wernicke’s area).
fMRI data acquisition
Scans were acquired using a 1.5T Avanto MRI scanner (Siemens
Medical Systems, Erlangen, Germany). High-resolution anatomical
images were acquired in the sagittal plane using a
three-dimensional inversion recovery gradient echo sequence (176
slices, TR = 2 000 ms, TE = 50 ms,
TI = 1 100 ms, resolution
1 x 1 x 1 mm3, 256 mm FOV). During the
fMRI protocol 110 functional volumes sensitive to blood oxygen
level-dependent contrast were acquired in all mapping tasks with
a T2*-weighted gradient echo, echo planar imaging sequence
(TR = 2 000 ms, TE = 50 ms, 21
interleaved slices, 5 mm thick, gap 1.25 mm, matrix
size 64 x 64, resolution 3.4 x 3.4 x 3.4 mm3). In the
tasks each of the 11 blocks lasted 20 s for a total scanning
time of 3:40 minutes.
fMRI data analysis
All fMRI analyses were performed using Brain Voyager QX (Brain Innovation, Maastricht, The Netherlands). Two dummy images were excluded from analysis in each task run. Images were motion-corrected relative to the first volume with trilinear estimation and interpolation. Images were corrected for different slice acquisition times and linear trends, spatially smoothed using a Gaussian filter (FWHM 4 mm), and temporally smoothed with a high pass filter of 3 cycles/point. Data sets exceeding movement criteria 3 mm displacement/3.0º rotation within a functional run were rejected. Each subject’s functional data were co-registered to his/her high-resolution anatomical MRI, rotated into the AC-PC plane and normalised to Talairach space using a linear transformation calculated on the anatomical images. The 3.4 x 3.4 x 3.4 mm3 fMRI voxels were interpolated during Talairach normalisation to 3 x 3 x 3 mm3.
Whole-brain group analysis. For each task, a fixed-effect
analysis of variance was performed using the general linear
model with three predictors, one for the first 20 s rest, one
for the control state and one for the active state (finger
tapping, verb generation and listening) convolved by the
standard haemodynamic function. Activations during the active
conditions were examined by comparing activations during the
active and control blocks. The voxel-wise threshold was set to
p<0.001 (voxel-wise Bonferroni
corrected for whole-brain multiple comparisons, min t statistic
7.6). Clusters were reported if their extent was greater than
20 contiguous voxels, where the voxel size refers to the 1 x 1
x 1 mm3 resolution of the iso-voxelled
structural images.
Results
The whole-brain group analysis of the finger-tapping task, conducted using the right hand in all participants, produced significant signal increases in the expected parts of the cortex representing contralateral primary motor cortex t(9)=14.24, p<0.0001, and ipsilateral cerebellum t(9)=13.11, p<0.0001.
In the verb generation task, signal increases were noted in anatomically typical expressive language cortex (Broca’s area) in the left posterior inferior frontal gyrus t(9)=7.86, p<0.0001 and in receptive language cortex (Wernicke’s area) in the left superior temporal gyrus t(9)=5.34, p<0.0001. The passive listening task produced signal increases in the superior temporal gyri of the left hemisphere t(9)=7.23, p<0.0001, and the right hemisphere t(9)=5.89, p<0.0001.

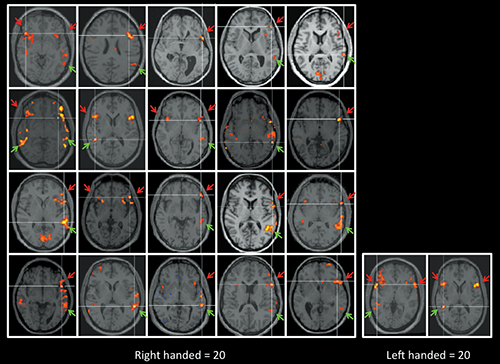

The activation maps for individual patients generated from
single-subject analyses are presented in Fig. 5, in the
interests of assessing the predictability of the findings across
this group of patients. These analyses show that all patients
who reported being left-handed are right-hemisphere dominant for
language. These results are detailed in Table 3.
Discussion
The findings from this collection of fMRI studies support the use of the language paradigms applied in our Epilepsy Unit. While activation patterns are widely distributed through these patients’ dominant hemispheres, areas crucial for expressive and receptive language function can be isolated and reliably mapped. The findings are clearly meaningful at both the individual and group level.
The value of fMRI for determining hemispheric dominance, or lateralising language, is self-evident. In single-subject analyses at our centre, a voxel count is typically conducted in each hemisphere using specified threshold settings in order to adhere to standardised criteria. Areas critical to language function are localised by assessing activation patterns in pre-defined anatomical regions, namely in expressive and receptive language areas. Activation in these regions is also considered across both language tasks, to assess reproducibility of signal change.
Receptive language paradigms are reported to frequently produce bilateral signal increase in posterior superior temporal cortex.16 Five of the 22 patients in this series of studies showed bilateral signal changes in receptive cortex in response to the passive listening task. This provides important information about the extent of functional reserve in the contralateral hemisphere that would not be acquired from Wada testing.
Expressive language cortex in the dominant inferior, posterior frontal lobe and receptive cortex in the dominant superior posterior temporal lobe, together with the white matter pathway connecting these two regions, the arcuate fasciculus, is commonly cited as the neural substrate of language. It is generally agreed, however, that the anatomical representation of language is not this simple and that language involves a number of discrete and interacting cognitive processes that are subserved by a distributed network of additional brain regions.18 An additional area critical to confrontation naming, a sub-function of language, lies in the baso-lateral temporal lobe.19-21 Patients with temporal lobe epilepsy (TLE) often report word-finding difficulties and exhibit below-average performance on measures of confrontation naming. The extent of the neocortical (lateral) resection in patients undergoing dominant temporal lobe surgery determines the probability of new (in those without pre-existing dysnomia) or additional word-finding difficulties after surgery. Hence, identifying the neural correlate of naming is important in pre-surgical TLE patients, and we have added the auditory naming task22 to our language-mapping paradigm to identify regions of activation that may be unique to descriptive naming.
False-positive and false-negative results from BOLD contrast fMRI for defining language representation must be considered. Clusters of BOLD signal changes vary in size, depending on the thresholds used to display the data. In addition, the region of maximal BOLD activation does not always correlate with disruption to language as defined by direct cortical stimulation.16 Since fMRI identifies areas involved in language and ECS effectively identifies those areas critical for language, functional imaging may be best utilised as one component in a broader language-mapping protocol.
Accordingly, the results from the routine language fMRI in our
unit are used as a step in a multi-tiered approach to localise
language in pre-surgical epilepsy patients. These results,
considered in the context of results from neuropsychological
testing, are subsequently used to inform and guide
extra-operative and intra-operative ECS. The benefit of having
fMRI results to tailor and execute ECS testing in a more
expedient and focused manner is self-evident. On the basis of
our findings to date, the fMRI paradigm described above has been
clinically useful for defining cortical representation of motor
and language function.
References
1. Wiebe S, Blume WT, Girvin JP, Eliasziw M. A randomized, controlled trial of surgery for temporal-lobe epilepsy. N Engl J Med 2001;345(5):311–318. [http://www.nejm.org/doi/full/10.1056/NEJM200108023450501]
2. Téllez-Zenteno JF, Dhar R, Wiebe S. Long-term seizure outcomes following epilepsy surgery: A systematic review and meta-analysis. Brain 2005;128(5):1188-1198. [http://dx.doi.org/10.1093/brain/awh449]
3. Wada J, Rasmussen T. Intracarotid injection of sodium amytal for the lateralization of cerebral speech dominance: Experimental and clinical observations. J Neurosurg 1960;17:266-282.
4. Ammerman JM, Caputy AJ, Potolicchio SJ. Endovascular ablation of a temporal lobe epileptogenic focus: A complication of Wada testing. Acta Neurol Scand 2005;112(3):189-191. [http://dx.doi.org/10.1111/j.1600-0404.2005.00459.x]
5. Gaillard WD, Balsamo L, Xu B, et al. fMRI language task panel improves determination of language dominance. Neurology 2004;63(8):1403-1408.
6. Swanson SJ, Sabsevitz DS, Hammeke T, Binder JR. Functional magnetic resonance imaging of language in epilepsy. Neuropsychol Rev 2007;17(4):491-504. [http://dx.doi.org/10.1007/s11065-007-9050-x]
7. Woermann FG, Jokeit H, Luerding R, Freitag H, Schulz R, Guertler S, et al. Language lateralization by Wada test and fMRI in 100 patients with epilepsy. Neurology 2003;61(5):699-701.
8. Dym RJ, Burns J, Freeman K, Lipton ML. Is functional MR imaging assessment of hemispheric languange dominance as good as the Wada test?: A meta-analysis. Radiology. 2011;261(2):446-55. [http://dx.doi.org/10.1148/radiol.11101344]
9. Giussani C, Roux F-E, Ojemann J, Sganzerla EP, Pirillo D, Papagno C. Is preoperative functional magnetic resonance imaging reliable for language areas mapping in brain tumor surgery? Review of language functional magnetic resonance imaging and direct cortical stimulation correlation studies. Neurosurgery 2010;66(1):113-120. [http://dx.doi.org/10.1227/01.NEU.0000360392.15450.C9]
10. Faro SH, Mohammed FB. Functional MRI: Basic principles and clinical applications. New York: Springer, 2006.
11. Smits M, Visch-Brink E, Schraa-Tam CK, Koudstaal PJ, Van der Lugt A. Functional MR imaging of language processing: An overview of easy-to-implement paradigms for patient care and clinical research. Radiographics 2006;26:S145-S158. [http://dx.doi.org/10.1148/rg.26si065507]
12. Abbott DF, Waites AB, Lillywhite LM, Jackson GD. fMRI assessment of language lateralization: An objective approach. Neuroimage 2010;50(4):1446-1455. [http://dx.doi.org/10.1016/j.neuroimage.2010.01.059]
13. Suarez RO, Whalen S, Nelson AP, Tie Y, Meadows M-E, Radmanesh A, et al. Threshold-independent functional MRI determination of language dominance: A validation study against clinical gold standards. Epilepsy Behav 2009;16(2):288-297. [http://dx.doi.org/10.1016/j.yebeh.2009.07.034]
14. Adcock JE, Wise RG, Oxbury JM, Oxbury SM, Matthews PM. Quantitative fMRI assessment of the differences in lateralization of language-related brain activation in patients with temporal lobe epilepsy. Neuroimage 2003;18(2):423-438.
15. McGraw P, Mathews VP, Wang Y, Phillips MD. Approach to functional magnetic resonance imaging of language based on models of language organization. Neuroimaging Clin N Am 2001;11(2):343-353.
16. Duncan JS. Imaging in the surgical treatment of epilepsy. Nat Rev Neurol 2010;6(10):537-550. [http://dx.doi.org/10.1038/nrneurol.2010]
17. Oldfield RC. The assessment and analysis of handedness: The Edinburgh inventory. Neuropsychologia 1971;9(1):97-113.
18. Hickok G. The functional neuroanatomy of language. Phys Life Rev. 2009;6(3):121-143. [http://dx.doi.org/10.1016/j.plrev.2009.06.001]
19. Damasio H, Tranel D, Grabowski T, Adolphs R, Damasio A. Neural systems behind word and concept retrieval. Cognition 2004;92(1-2):179-229. [http://dx.doi.org/10.1016/j.cognition.2002.07.001]
20. Tranel D, Grabowski TJ, Lyon J, Damasio H. Naming the same entities from visual or from auditory stimulation engages similar regions of left inferotemporal cortices. J Cogn Neurosci 2005;17(8):1293-1305. [http://dx.doi.org/10.1162/0898929055002508]
21. DeLeon J, Gottesman RF, Kleinman JT, Newhart M, Davis C, Heidler-Gary J, et al. Neural regions essential for distinct cognitive processes underlying picture naming. Brain 2007;130(Pt 5):1408-1422. [http://dx.doi.org/10.1093/brain/awm011]
22. Hamberger MJ, Seidel WT. Auditory and visual naming tests: Normative and patient data for accuracy, response time, and tip-of-the-tongue. J Int Neuropsychol Soc 2003;9(3):479-489.
Accepted 24
December 2012.
