Diagnosing Xpert MTB/RIF-negative TB: Impact and cost of alternative algorithms for South Africa

K Schnippel, G Meyer-Rath, L Long, W S Stevens, I Sanne, S Rosen

Health Economics and Epidemiology Research Office, Department of Internal Medicine, School of Clinical Medicine, Faculty of Health Sciences, University of the Witwatersrand, Johannesburg

K Schnippel, MPA

L Long, MComm

Center for Global Health and Development, Boston University, Boston, USA; and the Health Economics and Epidemiology Research Office, Department of Internal Medicine, School of Clinical Medicine, Faculty of Health Sciences, University of the Witwatersrand, Johannesburg

G Meyer-Rath, MD, PhD

I Sanne, FCP, DTM&H

S Rosen, MPA

Department of Molecular Medicine and Haematology, Faculty of Health Sciences, University of the Witwatersrand; and the National Health Laboratory Service, Johannesburg.

W S Stevens, MB BCh, MMed (Haematology), FCPath (Haematology)

Corresponding author: K Schnippel (kschnippel@heroza.org)

Background. Use of Xpert MTB/RIF is being scaled up throughout South Africa for improved diagnosis of tuberculosis (TB). A large proportion of HIV-infected patients with possible TB are Xpert-negative on their initial test, and the existing diagnostic algorithm calls for these patients to have sputum culture (Xpert followed by culture (X/C)). We modelled the costs and impact of an alternative diagnostic algorithm in which these cultures are replaced with a second Xpert test (Xpert followed by Xpert (X/X)).

Methods. An existing population-level decision model was used. Costs were estimated from Xpert implementation studies and public sector price and salary data. The number of patients requiring diagnosis was estimated from the literature, as were rates of TB treatment uptake and loss to follow-up. TB and HIV positivity rates were estimated from the national TB register and laboratory databases.

Results. At national programme scale in 2014, X/X (R969 million/year) is less expensive than X/C R1 095 million/year), potentially saving R126 million/year (US$17.4 million). However, because Xpert is less sensitive than culture, X/X diagnoses 2% fewer TB cases. This is partly offset by higher expected treatment uptake with X/X due to the faster availability of results, resulting in 1% more patients initiating treatment under X/X than X/C. The cost per TB patient initiated on treatment under X/X is R2 682, which is 12% less than under X/C (R3 046).

Conclusions. Modifying the diagnostic algorithm from X/C to X/X could provide rapid results, simplify diagnostic processes, improve HIV/TB treatment outcomes, and generate cost savings.

S Afr Med J 2013;103(2):101-106. DOI:10.7196/SAMJ.6182

The availability of Xpert MTB/RIF offers the potential for rapid, accurate diagnosis of tuberculosis (TB).1 This has generated new hope in resource-constrained countries with high burdens of TB/HIV co-infection. It has also created a dilemma: how to manage patients with TB symptoms who receive a negative Xpert test result for their initial sputum sample. HIV co-infection often results in a low TB bacillary load in sputum, so the sensitivity of acid-fast bacilli smear microscopy (AFB) is only 38 - 47% in this population.2 , 3

The World Health Organization (WHO) has recommended Xpert as the first-line diagnostic for adult patients with possible HIV/ TB co-infection.4 However, the sensitivity of a single Xpert test in AFB-negative patients, estimated at 62 - 79%, is also inadequate, though substantially better than for AFB.1 , 5 , 6 Meanwhile, TB has relatively rapid disease progression and high mortality rates in HIV-infected subjects.7 The high proportion of these patients who are left undiagnosed after a single Xpert test is therefore a concern.

In SA, the TB/HIV co-infection rate is estimated at 60%.8 In March 2011, the country announced its intention of replacing smear microscopy with Xpert for TB diagnosis. In 2011, the National Health Laboratory Service (NHLS) completed over 5 million sputum smear microscopy tests, including samples for TB treatment monitoring and diagnosis. This represents an approximate 10% increase over the previous year, due in part to national campaigns for intensified TB and HIV case finding. Assuming that this rate of annual growth can be maintained then in 2014, once Xpert has been fully rolled out across SA, 2.5 million persons with TB symptoms will be tested with it.

According to SA’s current diagnostic algorithm for pulmonary TB (PTB), HIV-infected patients with possible TB whose first Xpert test was negative have to return to the clinic and provide a second sputum sample to be sent for culture. The patient is also asked to undergo a clinical examination and chest X-ray and started on presumptive antibiotic therapy.9 A model developed to estimate the cost of implementing Xpert MTB/RIF in South Africa highlights the cost of this diagnostic challenge.10

Assuming both a stable TB epidemic and a stable HIV epidemic, in 2014 approximately 1.4 million HIV-infected persons, comprising 53% of all patients with possible TB, will test Xpert-negative but possibly still have TB. Although the current algorithm provides ‘gold standard’ for diagnostic results, it is expensive. The 53% of patients with possible TB who will require culture after Xpert will account for 60% of the total cost of diagnosing PTB in South Africa.9 Approximately 3% of these Xpert-negative patients will have a positive culture result, accounting for only 10% of all TB cases diagnosed in South Africa. A very large share of resources will therefore be spent to identify just 10% of TB patients. Culture results, moreover, are only available 2 - 6 weeks after sputum collection. With limited laboratory capacity, delays in sample transport, and weak information and patient follow-up systems, results may only reach patients months later, if at all. This delay contributes to a high rate of patient loss to follow-up after initial clinic presentation.1

Studies indicate that Xpert sensitivity increases with additional sputum samples tested.6 , 11 Because of the relatively high cost of Xpert MTB/RIF cartridges, however, algorithms using multiple Xpert tests have been confined to research. One modelling effort concluded that, compared with the use of two cultures or a single Xpert, an algorithm containing two Xpert tests was cost-effective in a pre-antiretroviral therapy (ART) population, regardless of the presence of TB symptoms.12

However, the differences between the modelled population and algorithms and the current standard of care in SA make this finding difficult to apply to the national diagnostic algorithm.

We set out to inform debates about the optimal use of Xpert in diagnosis of PTB in a context of high TB/HIV co-infection and low rates of AFB-positivity among patients with possible TB. To do this, we estimated the impact and costs of an alternative diagnostic algorithm in which culture, X-ray and antibiotic therapy (current Xpert diagnostic algorithm, abbreviated as Xpert/culture, or X/C) are replaced by a second Xpert test using a second sputum sample (proposed Xpert algorithm, abbreviated as Xpert/Xpert, or X/X). We used a national-level model projecting the costs of reaching full coverage with Xpert technology, developed by our team for the South African Department of Health in 2011.10

Methods

The National TB Cost Model captures the TB diagnostic process, starting with patients with possible TB, continuing to TB cases, and ending with completion of TB treatment.10 This population-level decision model estimates numbers of TB cases and costs for the financial years 2011 to 2016, with full-scale Xpert roll-out and implementation achieved in 2014. All results reported here are extrapolations for 2014. The development of the National TB Cost Model was approved by the Human Research Ethics Committee of the University of the Witwatersrand and the Institutional Review Board of Boston University Medical Campus.

Scenarios and algorithms

The model follows quarterly cohorts of TB patients with possible TB through up to three diagnostic visits under two scenarios. The X/C scenario represents the current Xpert diagnostic algorithm for patients with possible TB/HIV co-infection. Under X/C, an initial negative Xpert is followed by a second visit comprising a TB culture using a second sputum sample, a clinical examination, a chest X-ray, and antibiotic therapy. The X/X scenario is the alternative diagnostic algorithm, in which the visit that follows an initial negative Xpert is comprised of a second Xpert using a second sputum sample, and omits the other procedures (culture, examination, X-ray, and antibiotics).

Under both scenarios, patients are counted as diagnosed even if they fail to return to receive their results, though such patients would not be assumed to initiate treatment. As per South African TB guidelines, patients with a positive AFB, culture, or Xpert result are counted as having TB, meaning that the effective specificity of these tests is assumed to be 100%. Fig 1 illustrates the diagnostic algorithms used in this analysis.

The number of patients to be evaluated for TB (i.e. patients with a positive TB symptom screen) was calculated using data on the general population aged 15 years and above from the Actuarial Society of South Africa AIDS Model,13 as well as an assumption of prevalence of TB symptoms of 5.5% based on the Provincial Quarterly TB Reports.14 Based on analysis of the NHLS 2010 database, 20% of patients evaluated in 2011 were found to be TB positive. This rate decreases over time as a function of case finding initiatives (increased numbers of patients evaluated for TB), allowing us to model a stable epidemic.

Diagnostic parameters

AFB, culture, and HIV positivity rates for the model were estimated from a random sample of all patients entered into the national-level National Health Laboratory Service (NHLS) 2010 TB specimen database, and a random sample of all patients entered into the national-level 2010 Electronic TB Register. For this analysis, the model was updated with results of the pilot phase of national Xpert implementation through to the end of February 2012. Table 1 lists the model inputs and assumptions and their sources.

Cost parameters

Cost parameters are presented in Table 2. We calculated the cost of TB diagnosis from the government perspective, including the cost of outpatient visits, antibiotics, and laboratory and radiological tests. We used expert opinion and public-sector salary data to estimate the duration and cost of clinic visits, and 2011 NHLS charges for all laboratory costs except the Xpert test.

The new NHLS charge for the Xpert test, including the local price of cartridge procurement, operator time, sputum transport, quality assurance, and laboratory operating overheads, was set at R166 after the announcement of a global price reduction for Xpert MTB/RIF cartridges to US$9.98.15

No costs for MDR-TB treatment have been published for South Africa. We therefore used WHO CHOICE unit costs for inpatient days at public-sector tertiary-level hospitals, as well as outpatient visits at secondary-level hospitals,16 to estimate costs for drug-resistant TB treatment according to new South African policy guidelines issued in 2011.9 WHO CHOICE costs for outpatient visits at health facilities with no beds were used for drug-sensitive TB treatment. Current estimates for patient loss-to-follow-up and death during TB treatment8 , 9 , 17 were incorporated, and 2011 public-sector drug costs were applied to standardised regimens. Costs are reported in ZAR at 2011 exchange rates (US$1 = ZAR 7.23),18 undiscounted and excluding value-added tax.

Sensitivity analysis

In sensitivity analysis, we systematically varied eight central parameters:

• +/-25% in the cost of the Xpert test

• +/-25% in the proportion of patients with possible TB who have known HIV infection5

• +/-50% in the proportion of patients lost at each visit

• +/-20% in Xpert sensitivity for smear-negative TB6

• +/-50% in the proportion of TB which is smear positive11

• +/-50% in the TB positivity rate

• +/-50% access to LPA testing

• +/-50% proportion testing rifampicin resistant.

The per cent variation for each parameter was based on its variation in published literature.

Results

At full scale-up in 2014, the current diagnostic algorithm, X/C, will cost an estimated R1 095 million (Table 3). The alternative algorithm, X/X, will cost R969 million. X/X thus generates a total annual cost saving of R126 million (US$17.4 million), or 11% of total cost of diagnosis.

The cost per TB case initiated on treatment among HIV-positive, first Xpert-negative patients is R3 046 under X/C, compared with R2 682 under X/X (12% less). Cost savings from an X/X algorithm could be realised immediately, although their total value would be proportional to the extent of the roll-out of Xpert in 2012 and 2013 (results not shown).

Under the X/X algorithm, 2% fewer TB cases and 2% fewer MDR-TB cases are diagnosed because Xpert is less sensitive than culture. However, because loss to follow-up during the diagnostic process is expected to be substantially lower than in X/C, 1% more TB cases and 1% more MDR-TB cases are initiated on appropriate TB treatment under the X/X algorithm. This in turn would raise overall treatment costs by 1%. Therefore, the total (diagnosis and treatment) annual cost of SA’s PTB programme would be R2 194 million under X/X, which is 6% (R118 million) less than the R2 312 million under X/C.

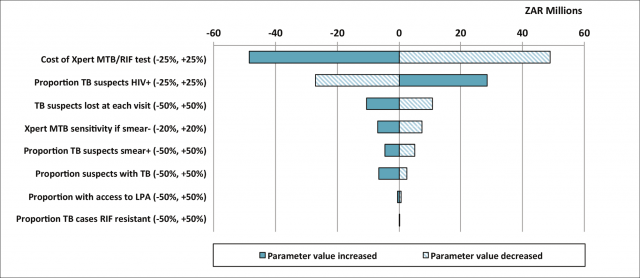

Sensitivity analysis

Of the parameters tested in sensitivity analysis, the incremental cost of the X/X algorithm was sensitive only to variations in the cost of an Xpert test. However, in August 2012, a public-private partnership with major international donors announced a buy-down of Xpert MTB/RIF cartridges so that the price of US$9.98 will not increase before 2020.15

Systematic variation in this and all other parameters still led to annual cost savings from using an X/X diagnostic algorithm (Fig. 2).

The number of cases of TB diagnosed and treated under each algorithm was sensitive to variation in the sensitivity of Xpert in AFB-negative TB. The assumed Xpert sensitivity of AFB-negative TB is 79%, lower than the sensitivity of culture. Therefore in most instances the total number of cases diagnosed in the X/X algorithm is slightly lower (average -2%) than the X/C algorithm. In these same scenarios, however, the number of TB patients initiated on treatment under X/X remains slightly higher (average +1%) because of the shortened time to diagnosis and consequent reduction in loss of patients.

Discussion

Declining international funding for HIV and TB programmes19 makes it essential that available resources be used as efficiently as possible to achieve public health goals. Newly-available diagnostic technologies for TB promise vastly improved diagnosis of the disease, particularly among the large population of TB/HIV co-infected patients in many low- and middle-income countries. However, access to these technologies poses the challenge of identifying the most efficient ways to use them, within the budgetary constraints of the overall public health systems.

We used a model parameterised for SA to compare two strategies for diagnosing TB in HIV co-infected patients where Xpert MTB/RIF technology is available. We found that for almost all parameter values considered, a diagnostic algorithm that follows an initial negative Xpert with a second Xpert, rather than with culture combined with examination, X-ray and antibiotics, reduces costs substantially, without meaningfully affecting the number of patients initiating TB treatment.

The estimated R118 million annual saving from the X/X algorithm is roughly equal to the cost of providing isoniazid as prophylactic therapy for all HIV-infected patients who are found not to have active TB disease. The X/X algorithm is also likely to reduce patient-level costs and treatment delays, directly benefiting those with TB. Furthermore, reducing patient loss to follow-up before treatment initiation may diminish the duration of exposure to active TB among patients’ families, co-workers and other contacts, and hence reduce TB transmission. The combination of budget savings and benefits to patients and their households argues that SA policymakers should seriously consider the proposed X/X strategy.

As large-scale rollout of Xpert MTB/RIF is just beginning in SA, it is uncertain how implementation will progress and what the results will be. We therefore had to make several assumptions that influence our results. For example, our analysis assumed that guidelines will be followed and tests performed correctly, but healthcare worker preferences and patient behaviour will certainly affect implementation of either algorithm. The pilot roll-out in SA indicates that laboratory technicians, clinicians and patients will prefer X/X’s ease of use and rapid results over the multiple visits, reliance on clinical interpretation and delayed results when using culture and clinical diagnosis.20

While X/X is one obvious alternative diagnostic algorithm for the present SA situation, other diagnostic sequences and combinations could be considered. For example, in some countries it may be desirable to use Xpert as a second test after a negative sputum smear. The value of the additional procedures that are combined with culture in the X/C algorithm – examination, X-ray, and antibiotics – should also be explored, as they contribute substantially to the cost of the algorithm.

To reduce the overall cost of TB diagnosis, strategies should be explored to reduce the number of Xpert-negative HIV-infected patients still considered TB suspects, such as presumptive antibiotic treatment. Further operational research into the diagnosis of extra-pulmonary TB, in particular the collection of specimens from extrapulmonary foci at primary healthcare level, could also reduce the number of Xpert-negative patients who are symptomatic but undiagnosed.

While these findings pertain to SA, they are applicable to other countries that are debating the appropriate placement of Xpert within their TB diagnostic algorithms, especially countries with high rates of TB/HIV co-infection. Once the initial investment in Xpert technology has been made, analysis suggests that performing a second Xpert test instead of a culture will conserve scarce clinical and laboratory skills, reduce costs, relieve patients of having to make multiple clinic visits, and accelerate availability of results.

Countries that do not replace smear microscopy with Xpert across all laboratories, but rather establish Xpert capacity in a few central ones, may still find that our proposed algorithm has cost advantages for diagnosing TB in patients who are initially AFB-negative, though this would require further analysis using different model parameters.

Acknowledgements. This study was funded by the South Africa Mission of the US Agency for International Development under the terms of Cooperative Agreement No. 674-A-00-09-00018-00 (GMR, KS, LL and SR) and under Agreement No. 674-A-00-08-0007-00 to Right to Care (IS). KS received additional training support from Fogarty International Center ICOHRTA AIDS/TB Grant No. U2RTW007373. The funders had no role in study design, analysis, decision to publish, or preparation of the manuscript.

KS designed the study, updated the model and wrote the first manuscript draft. GMR built and parameterised the model. LL and IS decided on scenarios and reviewed outputs. WS helped design the study and provided input data. SR helped design the study and edited the draft manuscript. All authors reviewed the paper.

The authors declare that they have no conflicts of interest. WS is the head of the NHLS National Priority Programs, and, as such, has the responsibility for purchasing Xpert MTB/RIF.

References

1. Boehme CC, Nicol MP, Nabeta P, et al. Feasibility, diagnostic accuracy, and effectiveness of decentralised use of the Xpert MTB/RIF test for diagnosis of tuberculosis and multidrug resistance : a multicentre implementation study. Lancet. 2011;6736(11):1-11. [http://dx.doi.org/10.1016/S0140-6736(11)60438-8]

1. Boehme CC, Nicol MP, Nabeta P, et al. Feasibility, diagnostic accuracy, and effectiveness of decentralised use of the Xpert MTB/RIF test for diagnosis of tuberculosis and multidrug resistance : a multicentre implementation study. Lancet. 2011;6736(11):1-11. [http://dx.doi.org/10.1016/S0140-6736(11)60438-8]

2. Bruchfeld J, Aderaye G, Palme IB, Bjorvatn B, Kallenius G, Lindquist L. Sputum concentration prevalence of HIV improves diagnosis of tuberculosis in a setting with a high prevalence of HIV. Trans R Soc Trop Med Hyg 2000;94:677-680. [http://dx.doi.org/10.1016/S0035-9203(00)90230-X]

2. Bruchfeld J, Aderaye G, Palme IB, Bjorvatn B, Kallenius G, Lindquist L. Sputum concentration prevalence of HIV improves diagnosis of tuberculosis in a setting with a high prevalence of HIV. Trans R Soc Trop Med Hyg 2000;94:677-680. [http://dx.doi.org/10.1016/S0035-9203(00)90230-X]

3. Eyangoh SI, Torrea G, Tejiokem MC, et al. HIV-related incremental yield of bleach sputum concentration and fluorescence technique for the microscopic detection of tuberculosis. Eur J Clin Microbiol Infect Dis 2008;27(9):849-855. [http://dx.doi.org/10.1007/s10096-008-0516-4]

3. Eyangoh SI, Torrea G, Tejiokem MC, et al. HIV-related incremental yield of bleach sputum concentration and fluorescence technique for the microscopic detection of tuberculosis. Eur J Clin Microbiol Infect Dis 2008;27(9):849-855. [http://dx.doi.org/10.1007/s10096-008-0516-4]

4. Stop TB Department. Rapid Implementation of the Xpert MTB/RIF diagnostic test. Geneva: World Health Organization, 2011. http://whqlibdoc.who.int/publications/2011/9789241501569_eng.pdf (accessed 11 March 2011)

4. Stop TB Department. Rapid Implementation of the Xpert MTB/RIF diagnostic test. Geneva: World Health Organization, 2011. http://whqlibdoc.who.int/publications/2011/9789241501569_eng.pdf (accessed 11 March 2011)

5. Scott LE, McCarthy K, Gous N, et al. Comparison of Xpert MTB/RIF with other nucleic acid technologies for diagnosing pulmonary tuberculosis in a high HIV prevalence setting: a prospective study. PLoS Medicine 2011;8(7):e1001061. [http://dx.doi.org/10.1371/journal.pmed.1001061]

5. Scott LE, McCarthy K, Gous N, et al. Comparison of Xpert MTB/RIF with other nucleic acid technologies for diagnosing pulmonary tuberculosis in a high HIV prevalence setting: a prospective study. PLoS Medicine 2011;8(7):e1001061. [http://dx.doi.org/10.1371/journal.pmed.1001061]

6. Boehme CC, Nabeta P, Hillemann D, et al. Rapid molecular detection of tuberculosis and rifampin resistance. N Engl J Med 2010;363(11):1005-1015. [http://dx.doi.org/10.1056/NEJMoa0907847]

6. Boehme CC, Nabeta P, Hillemann D, et al. Rapid molecular detection of tuberculosis and rifampin resistance. N Engl J Med 2010;363(11):1005-1015. [http://dx.doi.org/10.1056/NEJMoa0907847]

7. Getahun H, Harrington M, O’Brien R, Nunn P. Diagnosis of smear-negative pulmonary tuberculosis in people with HIV infection or AIDS in resource-constrained settings : informing urgent policy changes. Lancet 2007;369(9578):2042-2049. [http://dx.doi.org/10.1016/S0140-6736(07)60284-0]

7. Getahun H, Harrington M, O’Brien R, Nunn P. Diagnosis of smear-negative pulmonary tuberculosis in people with HIV infection or AIDS in resource-constrained settings : informing urgent policy changes. Lancet 2007;369(9578):2042-2049. [http://dx.doi.org/10.1016/S0140-6736(07)60284-0]

8. World Health Organization. Global Tuberculosis Control: WHO Report 2011. Geneva: World Health Organization, 2011. http://www.who.int/tb/publications/global_report/2011/en/index.html (accessed 1 September 2012).

8. World Health Organization. Global Tuberculosis Control: WHO Report 2011. Geneva: World Health Organization, 2011. http://www.who.int/tb/publications/global_report/2011/en/index.html (accessed 1 September 2012).

9. Directorate Drug-Resistant TB TB & HIV. Management of Drug-Resistant Tuberculosis: Policy Guidelines. Pretoria: Government Press, 2011. http://www.doh.gov.za/docs/policy/2012/TBpolicy.pdf (accessed 11 March 2011)

9. Directorate Drug-Resistant TB TB & HIV. Management of Drug-Resistant Tuberculosis: Policy Guidelines. Pretoria: Government Press, 2011. http://www.doh.gov.za/docs/policy/2012/TBpolicy.pdf (accessed 11 March 2011)

10. Meyer-Rath G, Schnippel K, Long L, et al. The impact and cost of scaling up GeneXpert MTB/RIF in South Africa. PLoS ONE 2012;7(5):e36966. [http://dx.doi.org/10.1371/journal.pone.0036966]

10. Meyer-Rath G, Schnippel K, Long L, et al. The impact and cost of scaling up GeneXpert MTB/RIF in South Africa. PLoS ONE 2012;7(5):e36966. [http://dx.doi.org/10.1371/journal.pone.0036966]

11. Lawn SD, Brooks SV, Kranzer K, et al. Screening for HIV-associated tuberculosis and rifampicin resistance before antiretroviral therapy using the Xpert MTB/RIF assay: a prospective study. PLoS Medicine 26;8(7):e1001067. [http://dx.doi.org/10.1371/journal.pmed.1001067]

11. Lawn SD, Brooks SV, Kranzer K, et al. Screening for HIV-associated tuberculosis and rifampicin resistance before antiretroviral therapy using the Xpert MTB/RIF assay: a prospective study. PLoS Medicine 26;8(7):e1001067. [http://dx.doi.org/10.1371/journal.pmed.1001067]

12. Andrews JR, Lawn SD, Rusu C, et al. The cost-effectiveness of routine tuberculosis screening with Xpert MTB/RIF prior to initiation of antiretroviral therapy : a model-based analysis. Aids 2012;26(8):987-995. [http://dx.doi.org/10.1097/QAD.0b013e3283522d47]

12. Andrews JR, Lawn SD, Rusu C, et al. The cost-effectiveness of routine tuberculosis screening with Xpert MTB/RIF prior to initiation of antiretroviral therapy : a model-based analysis. Aids 2012;26(8):987-995. [http://dx.doi.org/10.1097/QAD.0b013e3283522d47]

13. Actuarial Society of South Africa. AIDS Demographic model. ASSA2003 lite, 2003. http://aids.actuarialsociety.org.za/ (accessed 11 March 2011).

13. Actuarial Society of South Africa. AIDS Demographic model. ASSA2003 lite, 2003. http://aids.actuarialsociety.org.za/ (accessed 11 March 2011).

14. TB Control Programme. TB Provincial Quarterly Progress Reports 2011. http://www.doh.gov.za/docs/policy/2007/part4.pdf (accessed 1 September 2012).

14. TB Control Programme. TB Provincial Quarterly Progress Reports 2011. http://www.doh.gov.za/docs/policy/2007/part4.pdf (accessed 1 September 2012).

15. Gates Foundation, PEPFAR, USAID, UNITAID Finalize Partnership to Cut Price of TB Test. Philanthropy News Digest. 8 August 2012. http://foundationcenter.org/pnd/news/story.jhtml?id=388200003 (accessed 1 September 2012).

15. Gates Foundation, PEPFAR, USAID, UNITAID Finalize Partnership to Cut Price of TB Test. Philanthropy News Digest. 8 August 2012. http://foundationcenter.org/pnd/news/story.jhtml?id=388200003 (accessed 1 September 2012).

16. Choosing Interventions that are Cost-Effective. WHO-CHOICE unit cost estimates for service delivery – Estimation file. 2011. http://www.who.int/choice/costs/en/ (accessed 1 September 2012).

16. Choosing Interventions that are Cost-Effective. WHO-CHOICE unit cost estimates for service delivery – Estimation file. 2011. http://www.who.int/choice/costs/en/ (accessed 1 September 2012).

17. Dheda K, Shean K, Zumla A, et al. Early treatment outcomes and HIV status of patients with extensively drug-resistant tuberculosis in South Africa : A retrospective cohort study. Lancet 2010;375(9728):1798-1807. [http://dx.doi.org/10.1016/S0140-6736(10)60492-8]

17. Dheda K, Shean K, Zumla A, et al. Early treatment outcomes and HIV status of patients with extensively drug-resistant tuberculosis in South Africa : A retrospective cohort study. Lancet 2010;375(9728):1798-1807. [http://dx.doi.org/10.1016/S0140-6736(10)60492-8]

18. Oanda. US$ZAR Average exchange rate 1 Jan 2011-31 Dec 2011 [Internet]. Historical Exchange Rates. 2012;1-2. http://www.oanda.com/currency/historical-rates/ (accessed 1 September 2012).

18. Oanda. US$ZAR Average exchange rate 1 Jan 2011-31 Dec 2011 [Internet]. Historical Exchange Rates. 2012;1-2. http://www.oanda.com/currency/historical-rates/ (accessed 1 September 2012).

19. Raviglione M, Zumla A, Marais B, Horton R, Motsoaledi A. A sustainable agenda for tuberculosis control and research. The Lancet 2012;379(9821):1077-1078. [http://dx.doi.org/10.1016/S0140-6736(12)60373-0]

19. Raviglione M, Zumla A, Marais B, Horton R, Motsoaledi A. A sustainable agenda for tuberculosis control and research. The Lancet 2012;379(9821):1077-1078. [http://dx.doi.org/10.1016/S0140-6736(12)60373-0]

20. Clouse K, Page-Shipp L, Dansey H, et al. Implementation of Xpert MTB/RIF for routine point-of-care diagnosis of tuberculosis at the primary care level. S Afr Med J 2012;102(10):805-807. [http://dx.doi.org/10.7196/samj.5851]

20. Clouse K, Page-Shipp L, Dansey H, et al. Implementation of Xpert MTB/RIF for routine point-of-care diagnosis of tuberculosis at the primary care level. S Afr Med J 2012;102(10):805-807. [http://dx.doi.org/10.7196/samj.5851]

21. South African National AIDS Council. National Strategic Plan on HIV, STIs, and TB 2012-2016. 2012. http://www.doh.gov.za/docs/stratdocs/2012/NSPfull.pdf (accessed 1 September 2012).

21. South African National AIDS Council. National Strategic Plan on HIV, STIs, and TB 2012-2016. 2012. http://www.doh.gov.za/docs/stratdocs/2012/NSPfull.pdf (accessed 1 September 2012).

22. Weyer K, Brand J, Lancaster J, Levin J, Van der Walt M. Determinants of multidrug-resistant tuberculosis in South Africa: Results from a national survey. S Afr Med J 2007;97(11):1120-1128.

22. Weyer K, Brand J, Lancaster J, Levin J, Van der Walt M. Determinants of multidrug-resistant tuberculosis in South Africa: Results from a national survey. S Afr Med J 2007;97(11):1120-1128.

Accepted 28 September 2012.
